Parking Brake

Basic adjustment:

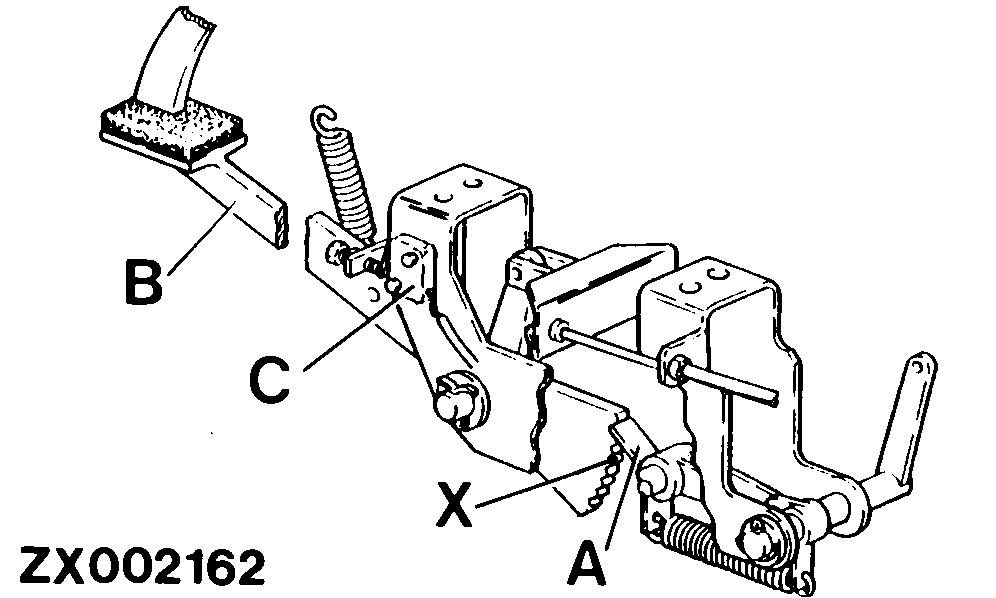

With parking brake released, lock (A) of brake pedal (B) engages the first tooth of the quadrant and the pedal bottoms against cab floor. Maximum pedal travel should not go beyond the fourth tooth (X) of the brake quadrant.

When parking brake is released, indicator light switch (C) is activated by the adjusting screw on the pedal.

A-Lock
B-Pedal
C-Indicator light switch
X-Max. position (fourth tooth of pedal)

AG,CO03622,2253 -19-15MAR02-1/1
