Changing Hydrostatic Drive Oil and Filter

Change hydrostatic oil and filter according to time periods specified in theLubrication Chart, Periodic Servicesection.

Filter change

IMPORTANT: Observe utmost cleanliness when installing filter. Install the new filter immediately after removing the used one.

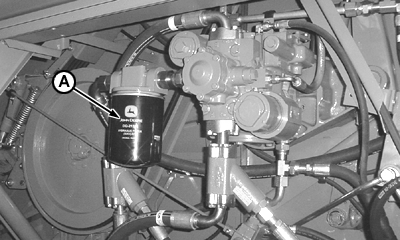

Loosen and remove filter (A).

Dispose of filter properly and replace with a genuine John Deere filter.

For installation of new filter, proceed as follows:

  • Coat filter sealing surface with a thin layer of oil.
  • Tighten filter (A) by hand until sealing ring comes into contact with filter housing surface and then tighten a further 3/4 to 1-1/4 turns. Do not overtighten.
  • Start engine and check for leaks. Retighten filter, if necessary.
  • Check oil level and refill system, if necessary.

Oil change

Preferentially have this service carried out by your local John Deere dealer, who alone is familiar with the relevant rules and regulations.

IMPORTANT: Always use specified oil (see "Fuel, Lubricants, Coolant and Capacities" section).

CQ193791
