Changing Final Drive Oil

1. Remove drain plug (D) to drain oil. Open filler plug (A).

2. After draining the oil, close drain plug (D) and remove oil level plug (C).

3. Fill with oil up to the indicated level. Install oil level plug. Close filler plug.

IMPORTANT: Only use recommended oil and quantity. Carefully clean area around filler opening.

Recommended oil: SAE 90 .

NOTE: Consult capacity in the "Specifications" section.

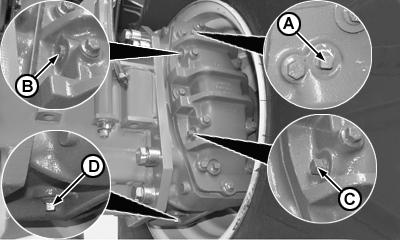

CQ267970


A-Oil filler plug
B-Vent plug
C-Oil level plug
D-Drain plug

AG,CO03622,2257 -19-14MAR06-1/1
