Engine Compartment Lighting

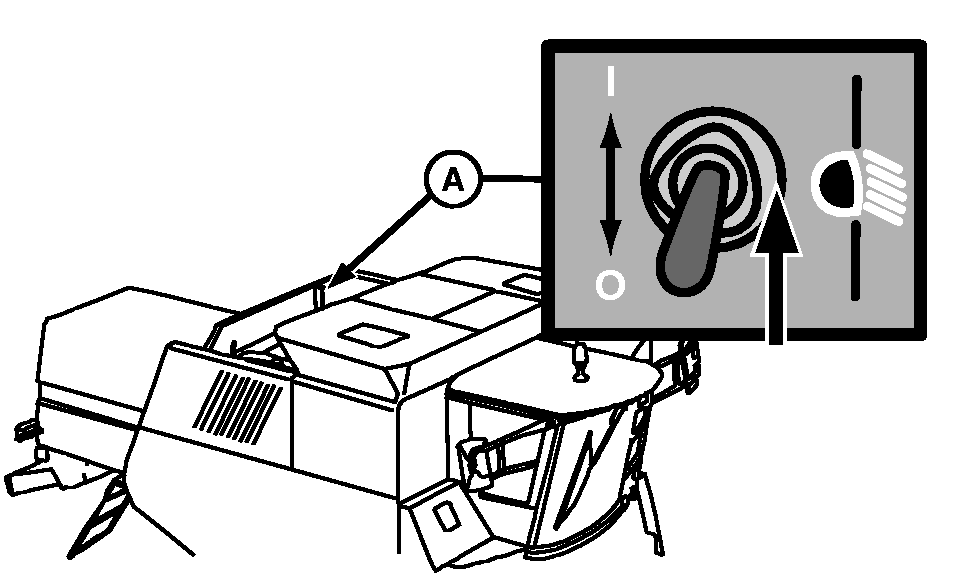

Switch on the engine compartment light through switch (A), located near light.

This light also functions as a rear light.

This light is positioned in a support that rotates according to the operator's needs and which may illuminate the engine compartment or the combine's rear hood.

NOTE: When the multi-function control handle is pulled backwards, the engine compartment lighting will turn on.

CQ245810

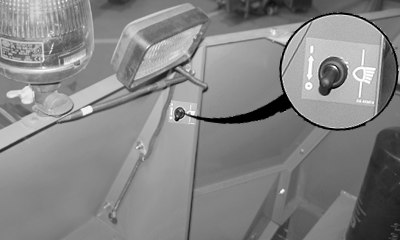

CQ271970

AG,CO03622,2853 -19-02JUN06-1/1
