Adjusting Floating Roller Height-600 Series Feeder House

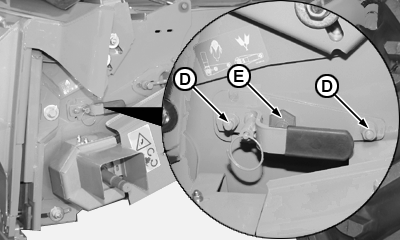

1. Loosen nuts (D) and adjust floating roller height through eccentric nut (E), on both sides of feeder house.

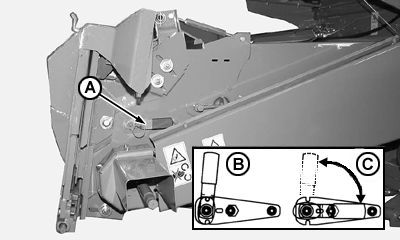

2. Adjust position (B) or (C) through lever (A).

Crop Lever position:
For large grain B (vertical)
For medium and small grain C (horizontal)




A-Lever
B-Position
C-Position
D-Nuts
E-Eccentric nut
