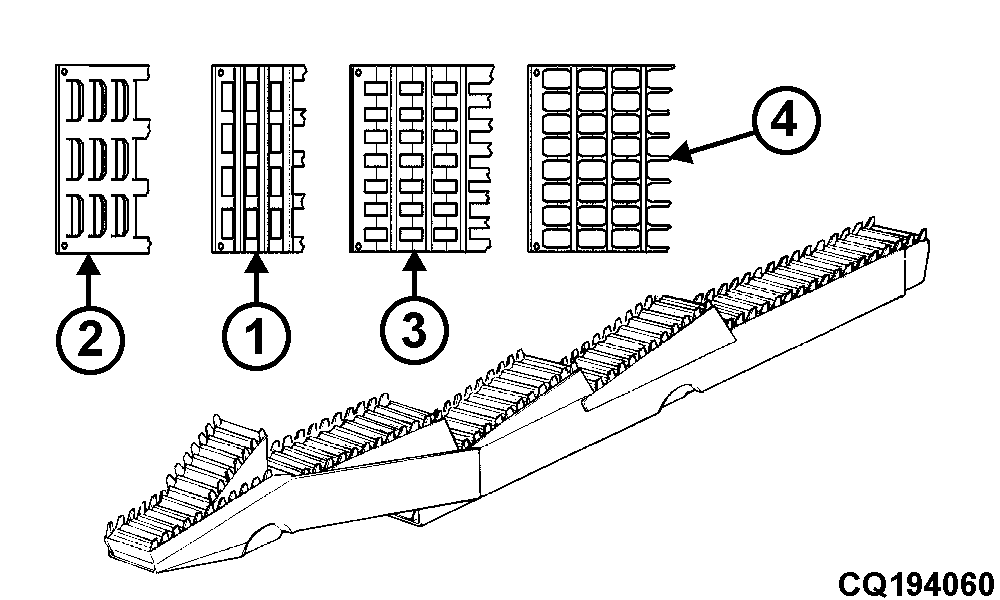

Straw Walker Types

All straw walker sieves are replaceable from the front to the rear, to permit rapid conversion to handle various types of crops.

1. Rectangular transversal sieve openings. Are indicated for rice harvesting.
2. "Frog mouth" sieve openings. Are indicated for all crops.
3. Rectangular longtitudinal sieve openings. Are indicated for fine grain harvesting, like wheat.
4. Rectangular longtitudinal sieve openings for "high flow rate". Are indicated for high productivity crops.

AG,GG05155,162 -19-20JUN06-1/1
