Slope Master System for Hilly Terrain

When operating on hilly terrain a large quantity of material accumulates at the sides of the cleaning shoe and extension. This material exits the combine without being harvested, thereby increasing grain loss.

To avoid loss, openings located on both sides of the rear ends of the cleaning shoe extension collect any material not totally separated.

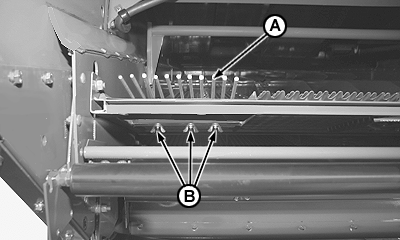

Depending on the slope and harvesting conditions, regulate openings by adding or removing fingers (A), after loosening winged nuts (B).

NOTE: The combine is delivered from the factory with 11 fingers mounted.
