Adjusting Grain Retention Plate

Designed to capture head, pod or ear tips that have not been completely threshed and that were not collected by the chaffer extension.

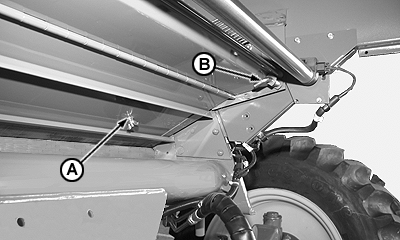

Loosen nuts (A). Release latch (B) on both sides and position as necessary.

• Forward: Easily threshed, dry crops; flat terrain.
• Rearward: Hard-to-thresh, very moist crops, and hilly terrain.
• Up: Collects greater crop quantity.
• Down: Collects smaller crop quantity.

AG,GG05155,168 -19-18FEB06-1/1
