Checking Header Leveling

Periodically check header leveling.

1. With combine on level ground raise header to maximum height.

2. Check if front tire pressure is correct (consult "Tire Inflation Pressure").

3. Measure height at both ends. Height should be equal.

Leveling header

NOTE: The adjustment is perfomed on right-hand side. For illustration purpose, hydraulic reverser has been removed.

1. Loosen 4 bolts (A).

2. Turn nuts (B) until the header is level.

3. Tighten bolts (A) and nuts (B) firmly.

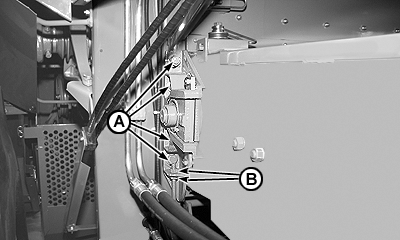

CQ246620

Hydraulic reverser not illustrated.

AG,GG05155,285 -19-06SEP05-1/1
