Tooth Concave Closure Plates

Can be used to harvest soy or other beans.

NOTE: It is not necessary to remove the concave to install the plates.

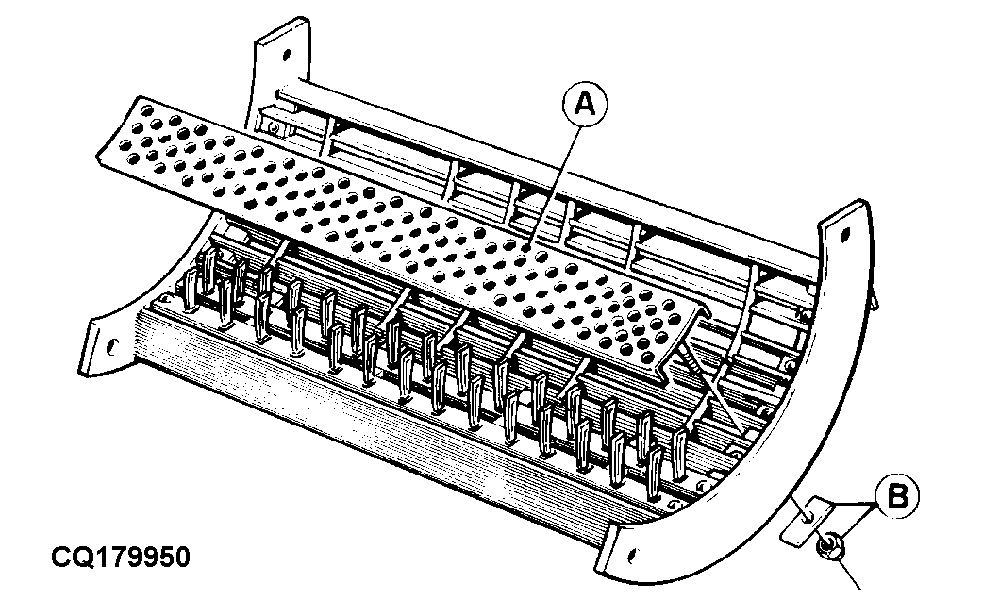

·Attach the closure plate (A) with tabs and nuts (B).

·Begin harvesting with one plate then, if necessary, install a second plate.

AG,GG05155,321 -19-24FEB99-1/1
