Cab Alarm Priorities

Cab alarm buzzer sounds in eight different ways to indicate the problem's priority.

Prioridade 0 One pulse with a duration of 0.3 seconds. This sequence occurs when there is a modification of the alarm status. Prioridade 1 Pulses of 0.07 seconds with a "duty cycle" of 50%. This sequence continues until the alarm condition is corrected or until removing supply. Prioridade 2 Alarm sounds continuously until the alarm condition is corrected or until removing supply. Prioridade 3 A sequence of three pulses of 0.25 seconds each with a "duty cycle" of 50%. This sequence is repeated every 15 seconds until the alarm condition is corrected or until removing supply. Prioridade 4 A sequence of three pulses of 0.5 seconds each with a "duty cycle" of 50%. This 		sequence is repeated every 30 seconds until the alarm condition is corrected or until removing supply. Prioridade 5 A sequence of four pulses of 0.25 seconds each with a "duty cycle" of 50%. This sequence is repeated every 5 minutes until the alarm condition is corrected or until removing supply. Prioridade 6 A sequence of three pulses of 0.33 seconds each with a "duty cycle" of 50%. This sequence is repeated every 30 minutes until the alarm condition is corrected or until removing supply. Prioridade 7 A sequence of two pulses of 0.5 seconds each with a "duty cycle" of 50%. Prioridade 8 A sequence of two pulses of 0.1 seconds each. Used for access to INFO-TRAK diagnostic mode. Prioridade 9 One pulse with a duration of 0.2 seconds. Used for reel calibration.

AS60558,0000FFD -19-01SEP08-1/2

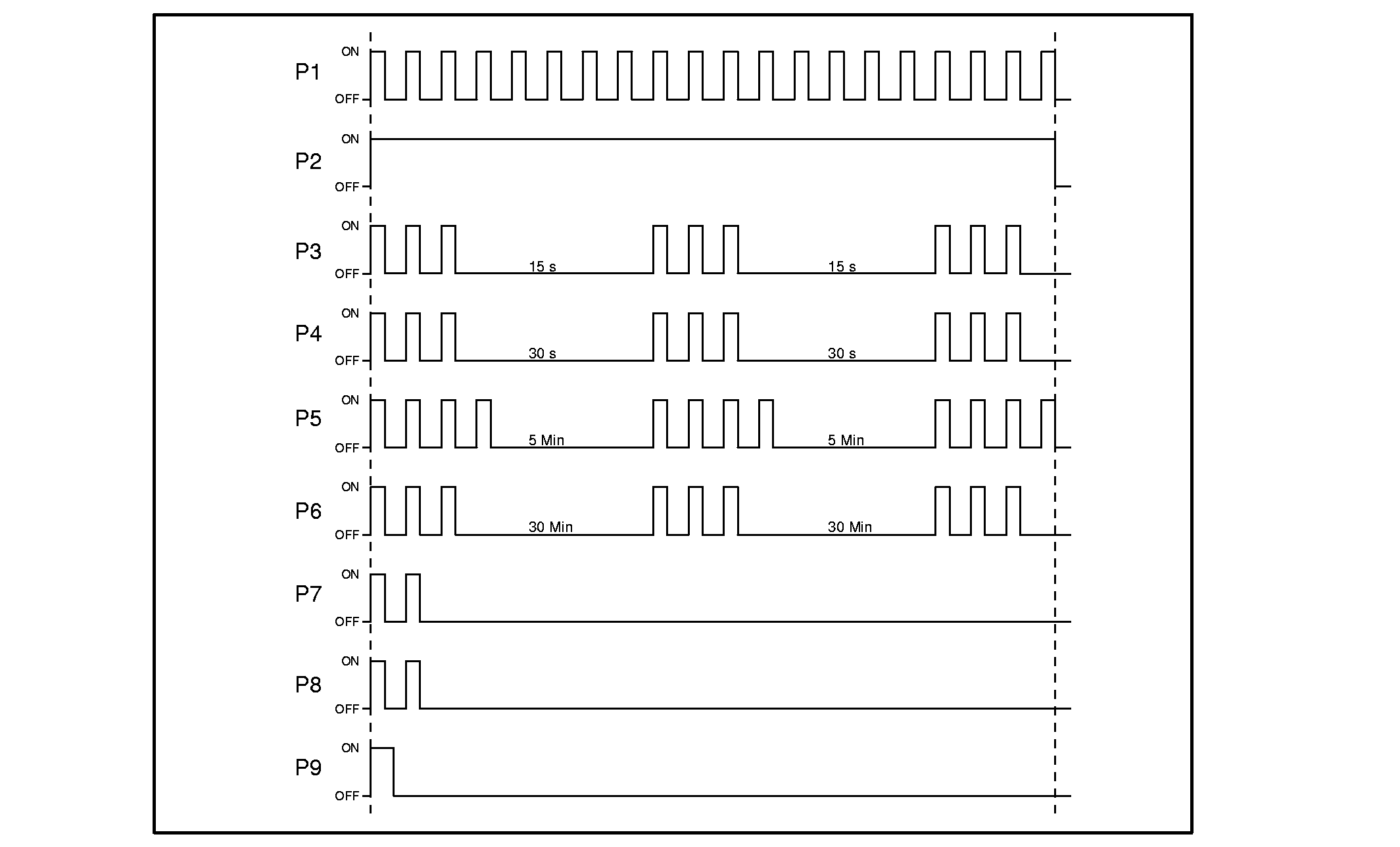

CQ281889


A-Begin of Problem
B-End of Problem
P1-Priority 1


P2-Priority 2
P3-Priority 3
P4-Priority 4


P5-Priority 5
P6-Priority 6
P7-Priority 7


P8-Priority 8
P9-Priority 9

IMPORTANT: Functions 8 and 9 have a priority above priority level 2 (P2).

AS60558,0000FFD -19-01SEP08-2/2
