OMCQ76042: 1450 CWS, 1470 WTS, 1570 CWS and 1570 WTS Combines, Block File: AS60558_00010BF_19

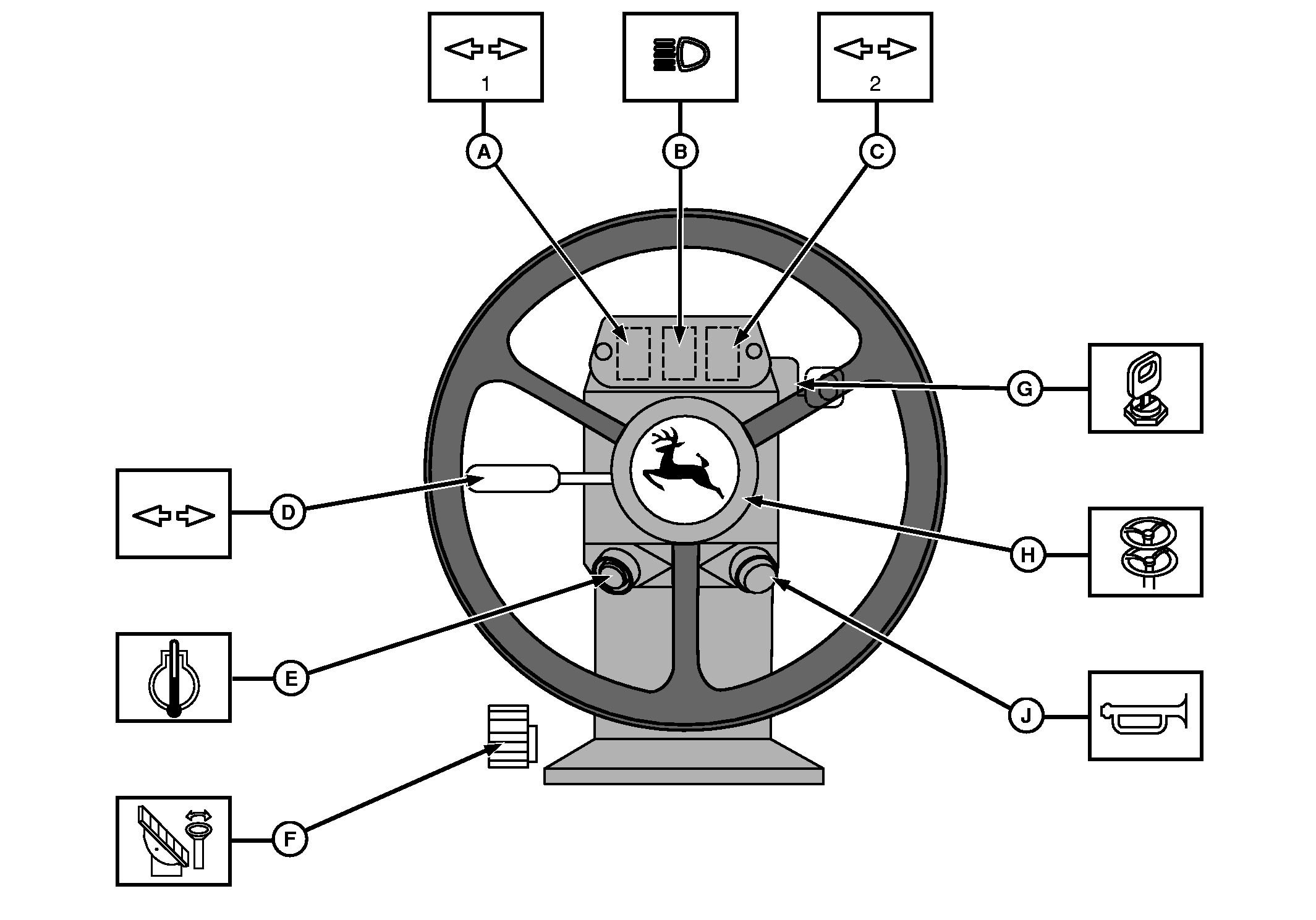

Steering Column

A-Turn-signal indicator light
B-Full-beam indicator light
C-Turn signal indicator light (trailer)

D-Turn-signal light switch
E-Unused
F-Pedal for horizontal steering column adjustment

G-Starter key
H-Steering wheel hub

J-Horn knob

Turn-signal indicator light (A) alerts the operator that one of the combine's turn-signal lamps is burned out. This indicator monitors two 21 W lamps and when one of them is burned out this indicator does not come on any more.

Trailer turn-signal indicator light (C) alerts the operator that one of the combine's or trailer's turn-signal lamps

is burned out. This indicator monitors three 21 W lamps and when one of them is burned out this indicator does not come on any more, however, indicator (A) continues switched on as long as two lamps of turn signal system are working.
