IMPORTANT: Header, reverser and unloading auger drives can be disengaged instantaneously with this switch in the event of malfunctions.

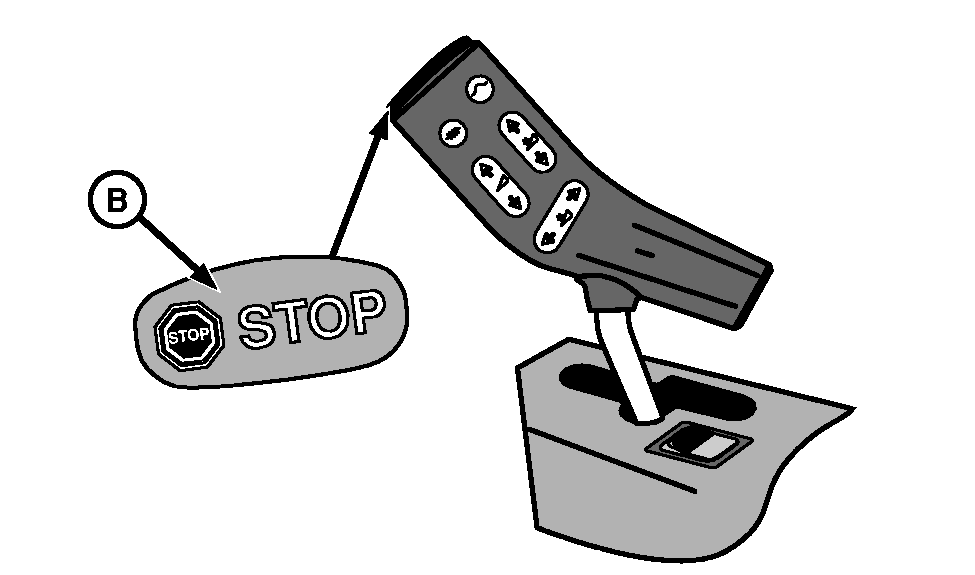

The emergency stop switch (B) also deactivates the reel and the automatic control modes of height, tilt and reel.

To re-engage any of the functions, turn the corresponding switch OFF and then ON. Before doing so, make sure that the malfunction has been corrected.
