Unloading Auger Engage Switch (With Lock)

NOTE: With this switch in the ON position, the engine start-up system is blocked.

Requirements:

  • Engine running.
  • Road safety switch in field position.

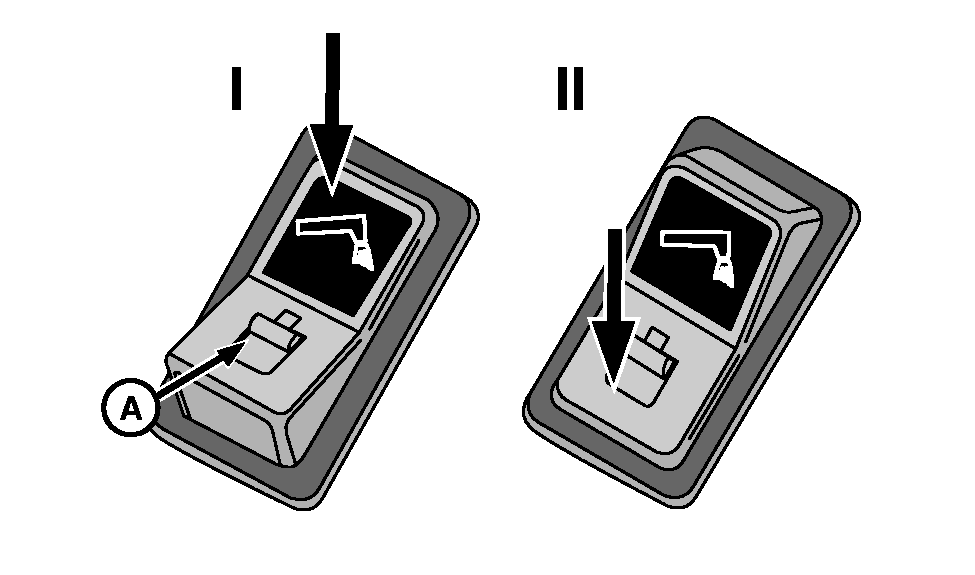

To engage unloading auger drive (I):

Push up operating lock (A) and depress top part of switch (symbol). The indicator light comes on as soon as the drive is engaged.

NOTE: The system only engages with the unloading auger positioned above a predetermined position. This position is determined in CCU address 0026. The changing procedure is in group "Service-Electrical System".

With unloading auger engaged, cab buzzer will sound 3 times every 30 seconds.

To disengage unloading auger drive (II):

Depress lower part of switch.

NOTE: For emergency stop, use emergency "STOP" switch (B) on multi-function control handle. In this case the unloading auger disengages with the unloading auger engage switch in ON position; to reactivate this function, it is necessary to turn unloading auger engage switch OFF and ON again.
