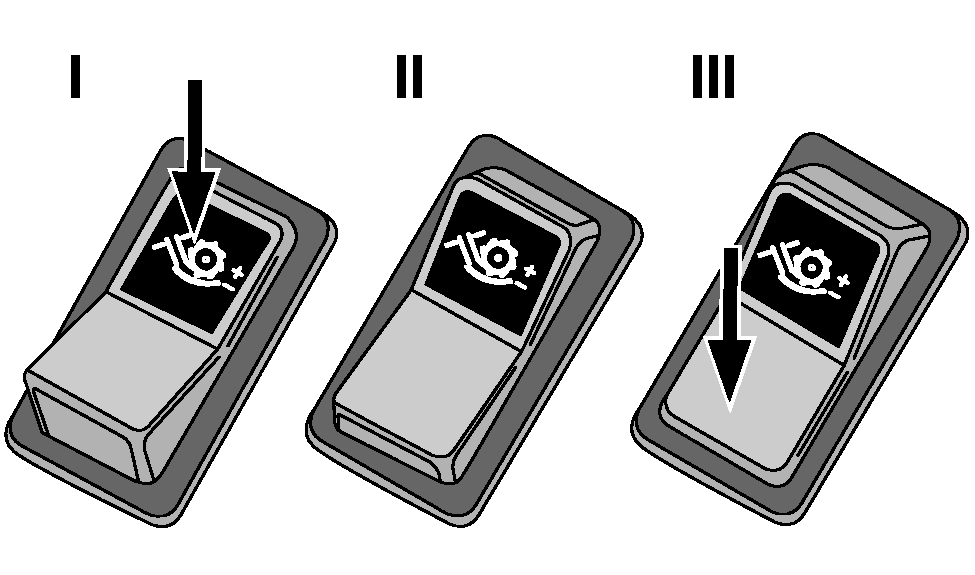

Concave Clearance Adjustment Switch

To adjust concave clearance, the starter key must be in position I or II.

NOTE: The current concave clearance can be displayed on INFO-TRAK™ monitor through reference values. Briefly touch rocker switch (top or bottom part) to display actual setting for 3 seconds.

The number 4 indicates minimum and the number 51 maximum concave clearance.

With manual adjustment, concave clearance is also shown on INFO-TRAK™ monitor.

I-Increase concave clearance
II-Off
III-Reduce concave clearance
