Threshing Cylinder Speed Switch

Cylinder speed adjustment is only possible with engine running, road safety switch in field position and separator engaged.

NOTE: The current cylinder speed is displayed on the INFO-TRAK monitor.

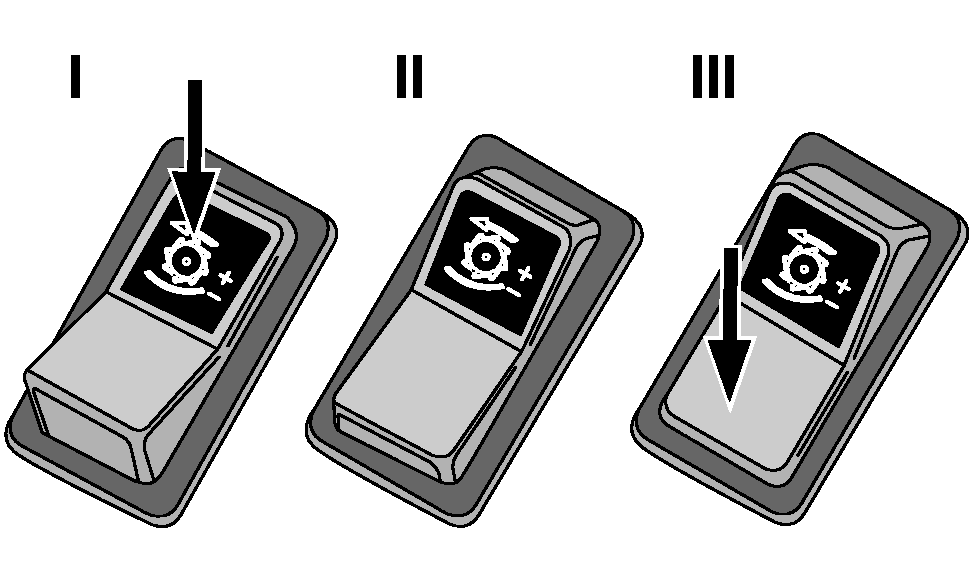

I-Increase cylinder speed
II-Off
III-Reduce cylinder speed

AS60558,00010C8 -19-29AUG08-1/1
