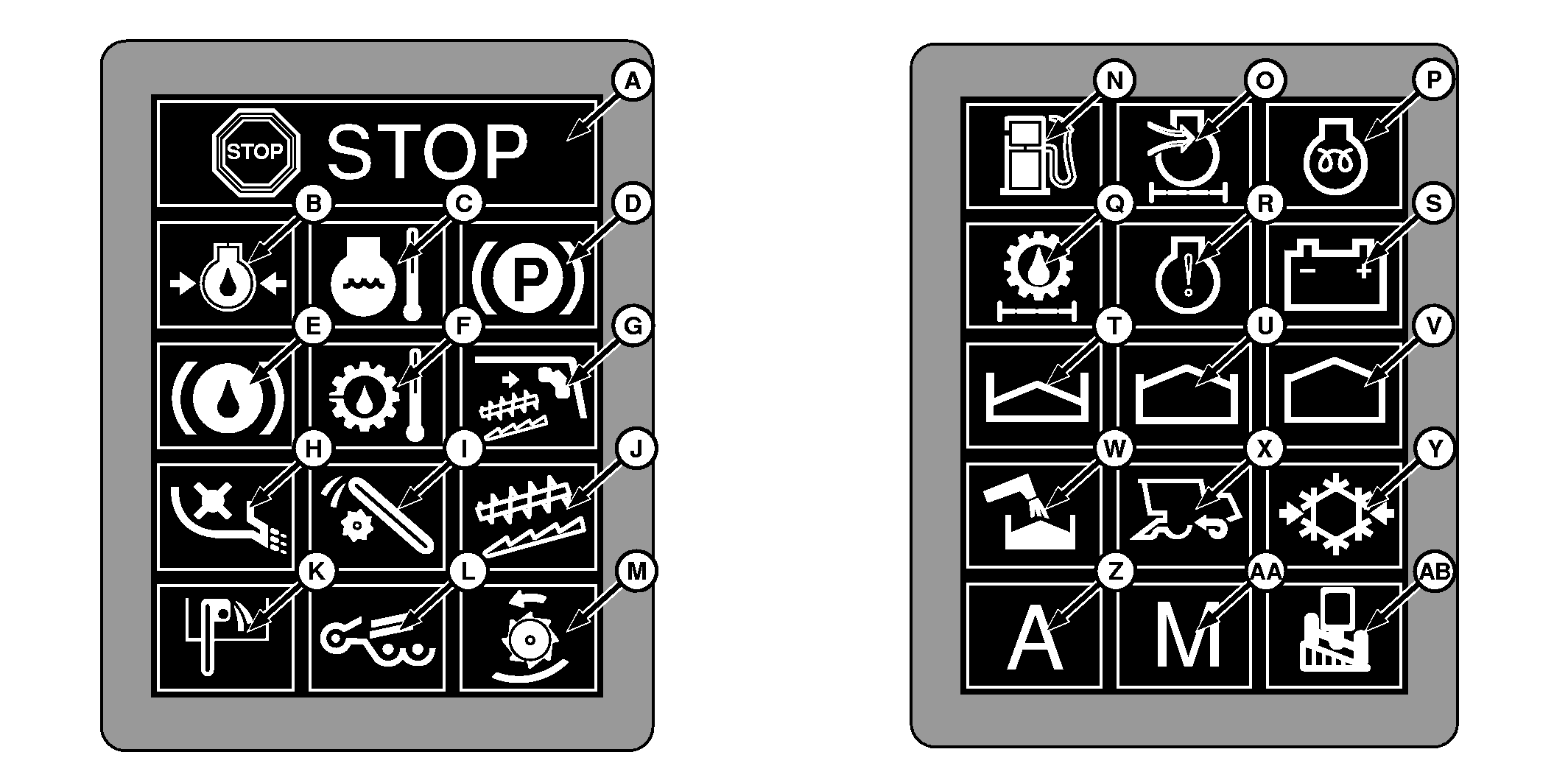

A-Emergency stop
B-Engine oil pressure
C-Engine coolant temperature
D-Parking brake
E-Without function
F-Hydrostatic drive oil temperature

G-Slugging
H-Straw chopper speed
I-Tailings elevator
J-Straw walker
K-Clean grain elevator
L-Fan
M-Threshing cylinder
N-Fuel level

O-Engine air filter
P-Without function
Q-Hydraulic oil filter
R-Engine warning
S-Alternator
T-Grain tank 1/2 full
U-Grain tank 3/4 full
V-Grain tank full

W-Unloading auger engaged
X-Four-wheel drive
Y-Air conditioning (high pressure)
Z-Without function
AA-No function
AB-Without function

Corner post indicator lights will come on if engine speed is below 2000 rpm with separator engaged.

If combine travels with separator engaged above 0.4 km/h (0.25 mph) and engine below 2000 rpm, cab
