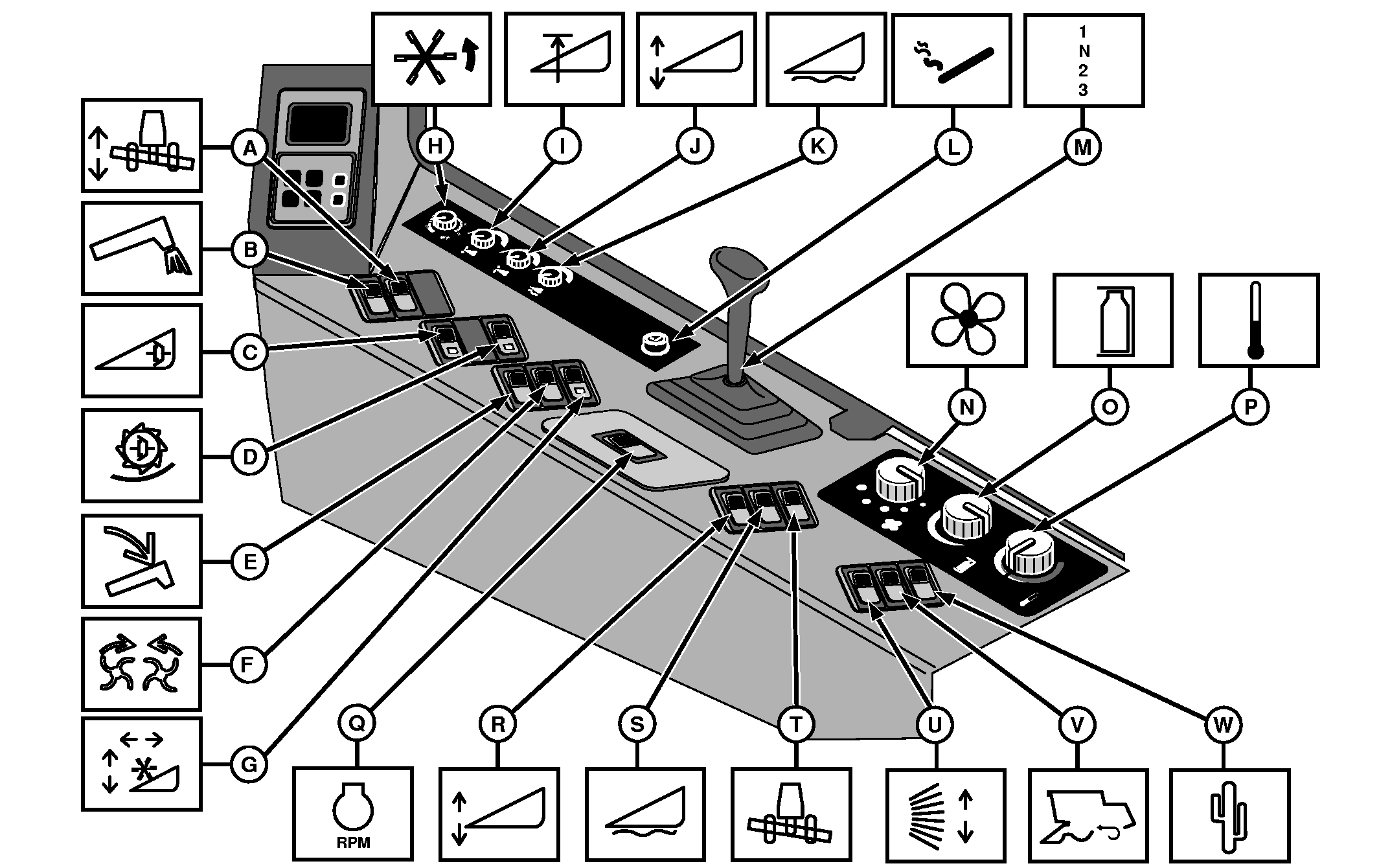

A-Header tilt/reel horizontal position commuting switch (manual mode)
B-Unloading auger engage switch
C-Header engage switch
D-Separator engage switch
E-Unloading auger swing switch
F-Chaff spreader adjustment switch
|
G-Automatic reel positioning switch
H-Automatic reel speed control potentiometer
I-Header raise sensitivity adjustment potentiometer
J-Header height control potentiometer
K-Float adjustment potentiometer
|
L-Cigarette lighter socket
M-Gearshift lever
N-Cab fan switch
O-Cooling compartment temperature control switch
P-Air conditioner/heater switch and temperature knob
Q-Throttle switch
R-Header automatic height control enable switch (AHC)
|
S-Float control enable switch
T-Automatic header lateral tilt control enable switch
U-Chopper blades adjustment switch
V-Four-wheel drive switch
W-Demoisturizer switch
|
