Slugging Indicator Light

Slugging sensors are actuated when there is exaggerated accumulation of material in the area of the rear hood. After 2 seconds, indicator light comes on and cab buzzer sounds with priority 2. See "Cab Alarm Priorities".

- Disengage threshing unit immediately.

- Shut off engine and wait until all moving parts have stopped, only then remove accumulated material.

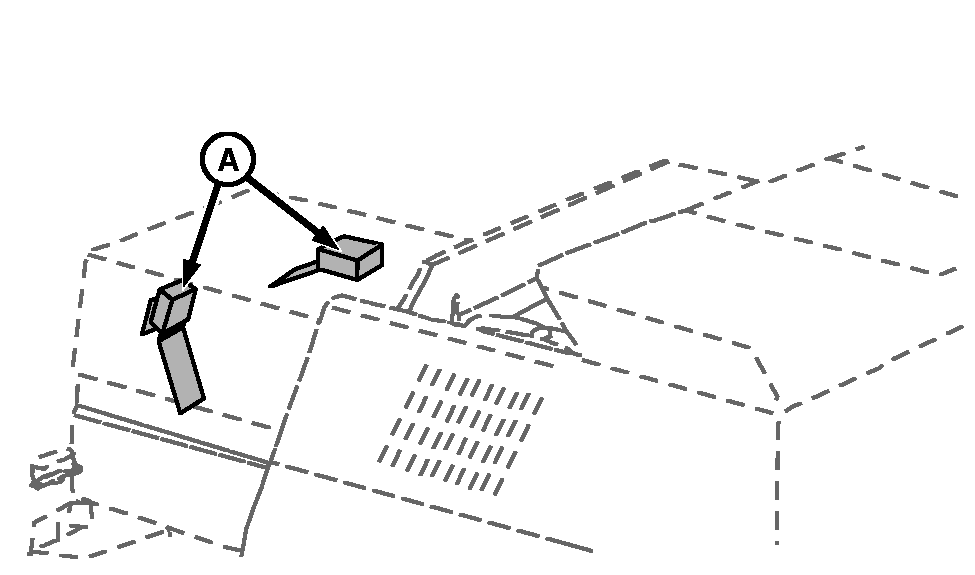

NOTE: Check slugging alarm function daily by pushing manually on plate of sensor (A), before operating combine. Starter key must be in position I.

AS60558,000116A -19-02FEB09-1/1
