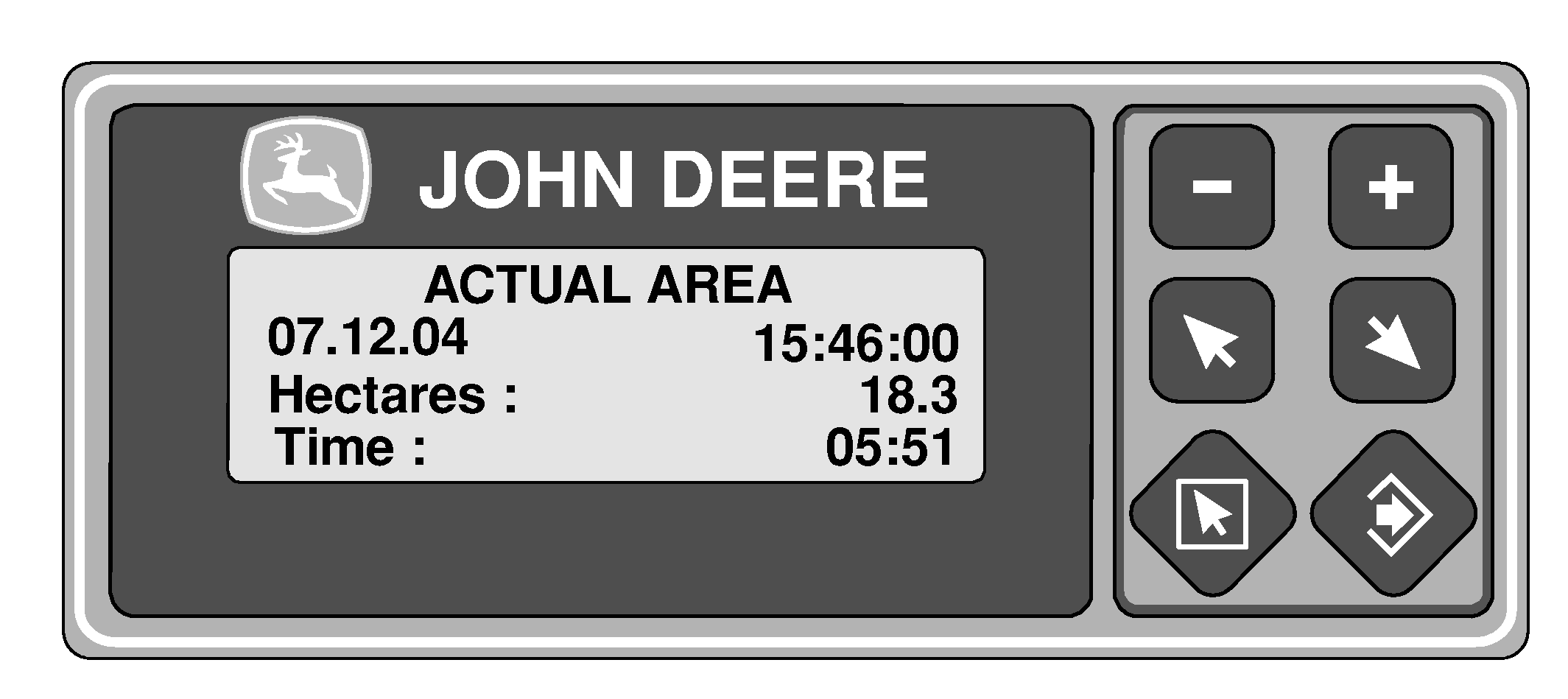

Hectaremeter

CQ229010

IMPORTANT: All described procedures assume that the operator is viewing the entry screen (Current Area).

NOTE: This equipment only operates with combine and threshing system engaged and is available in Portuguese, English, Spanish, German, French and Italian.

The operator needs to determine header width for this system to work. It is important to measure it correctly.

Header width is determined as follows:

1. Obtain header width from decal or measure width using a tape measure.

NOTE: If you are using the metric system the width must be converted into millimeters. If you are

using the imperial system, just note down the recorded value. Measurement unit type is defined in INFO-TRAK.

  • Ex: 618R - The header is 18 feet.
  • Convert "feet" to "mm" multiplying the amount in "feet" by 304.8.

2. Input header width in the hectaremeter. Consult "Setting Header Width".

Hectaremeter will save data when:

  • You change machine parameters.
  • Reset partial or actual area.
  • Turn starter key OFF.
  • Every 5 minutes of harvesting.

AS60558,000117C -19-19NOV08-1/1
