Right-Hand Armrest - Horizontal Adjustment

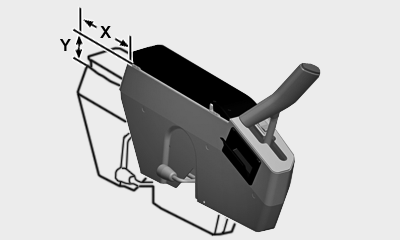

From the rear position, the armrest can be moved approx. 160 mm (6.3 in.) forward (X).

In addition, armrest height can be altered approx. 80 mm (3.1 in.) (Y).

Raise locking lever. Move armrest into desired position and release locking lever.
