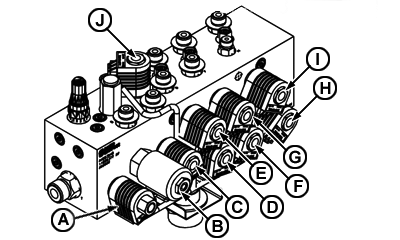

Solenoid Valves (Electric Valves) on Main Hydraulic Block
A-Load (Y1)
B-Threshing cylinder speed reduction (Y28)
C-Reel lower (Y18)
D-Unloading auger swing out (Y11)
E-Unloading auger swing in (Y10)
F-Reel extend (Y17)
G-Reel retract (Y16)
H-Header tilt to the right (Y14)
I-Header tilt to the left (Y15)
J-Reel raise (Y19)
|
