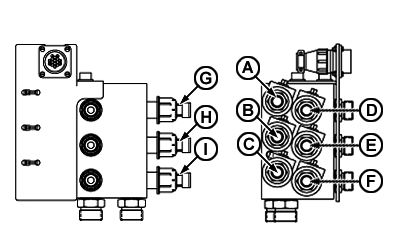

Solenoid Valves (Secondary Hydraulic Block)
A-Unloading auger drive disengagement (Y5)
B-Disengaging separator (Y23)
C-Disengaging header (Y24)
D-Engaging unloading auger (Y20)
E-Engaging separator (Y22)
F-Header engagement (Y21)
G-Unloading auger oil pressure sensor (B50)
H-Separator pressure sensor (B49)
I-Header pressure sensor (B51)
|
