Header Raise in Reverse Gear

Whenever reverse gear is engaged during operation, header will raise automatically to prevent damage caused by ground contact.

Raise time is the same as with break-off cut command.

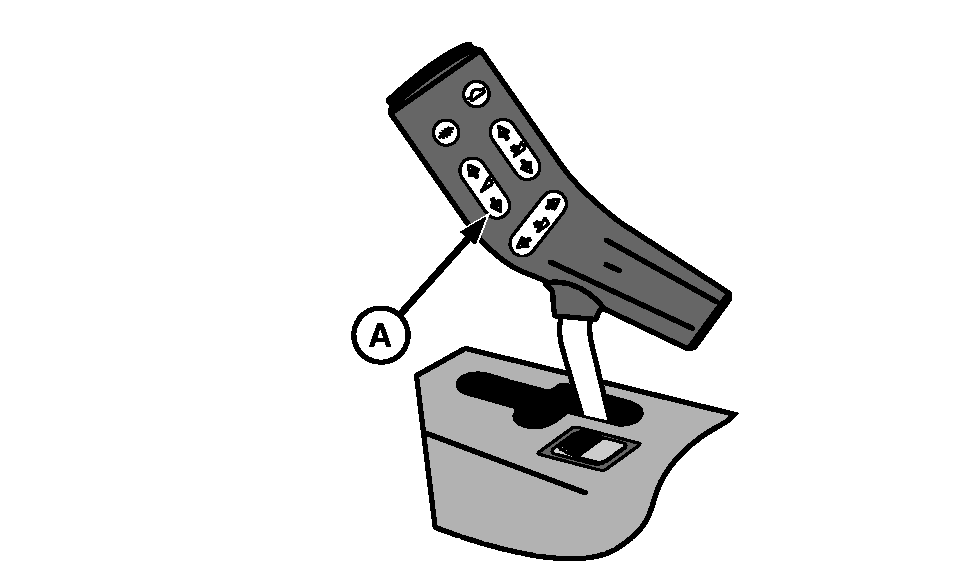

A manual header lowering command has priority over this function; this means that merely touching header lower button (A) is enough to disable the function. This function also may be disabled through HCU diagnostic address 0037.
