Setting Partial Corn Header Width

Partial width screen has the objective to adjust header width according to the number of rows to be harvested, for example, when finishing up.

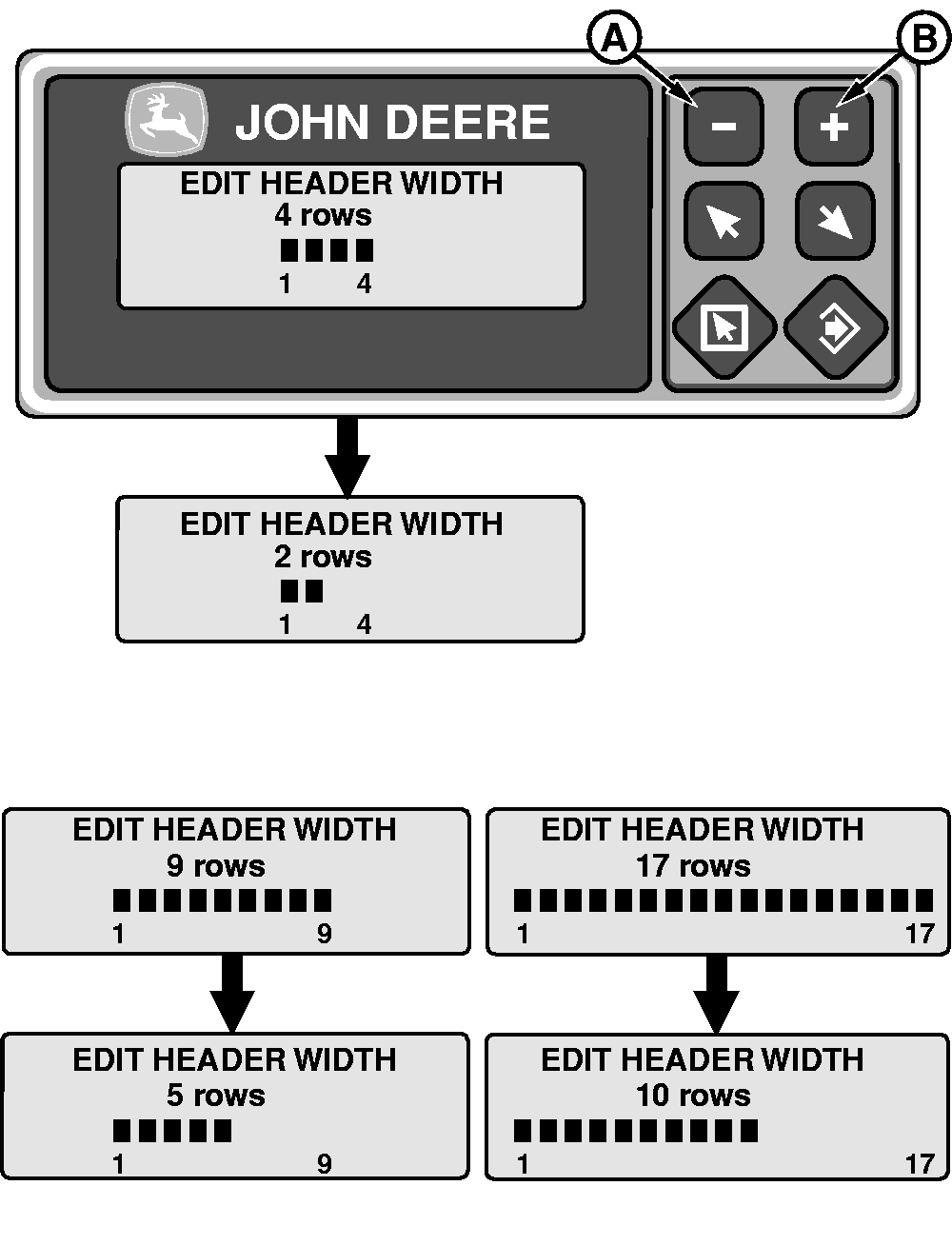

This screen alternates with the input screen (Actual Area). Adjustment of width to be harvested is done through keys (A) and (B), each bar represents one row.

Total row number is defined by procedure "Setting Corn Header Width".

AS60558,00011C8 -19-16JAN09-1/1
