Faults and Warnings
Active Trouble Codes
1.

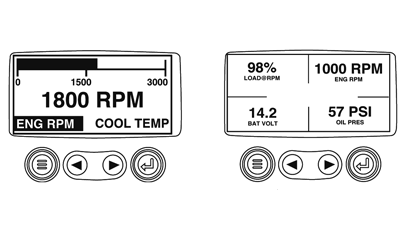

During normal operation the screen with one or four parameters is displayed.
|
|
|
|
AS60558,00011FC -19-26JAN09-1/7
|
|
2.

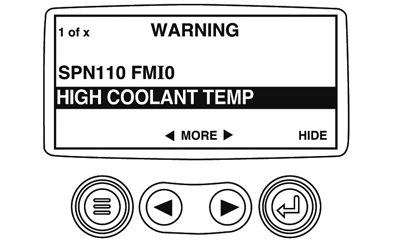

When the Diagnostic Gauge receives a trouble code from an engine control unit, the display of one or four parameters will be replaced by the message "Active Trouble Codes".
|
|
|
|
AS60558,00011FC -19-26JAN09-2/7
|
|
3.

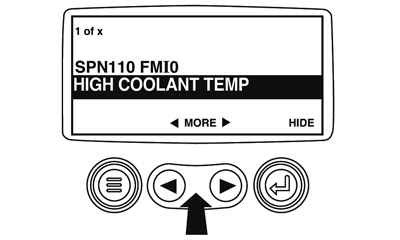

If the word "MORE" appears above the "Arrow Buttons" there are other active trouble codes that can be displayed. Use the "Arrow Buttons" to browse to next "Active Trouble Code".
|
|
|
|
AS60558,00011FC -19-26JAN09-3/7
|
|
4.

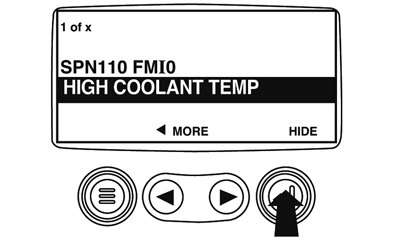

To confirm, "Hide" a fault and to return to the screen of one or four parameters, press "Enter Button".
|
|
|
|
AS60558,00011FC -19-26JAN09-4/7
|
|
5.

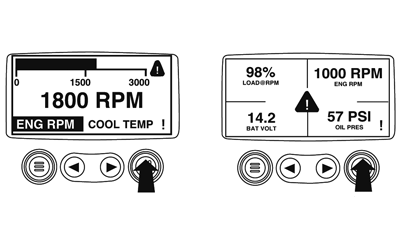

Display returns to screen of one or four parameters, however, the warning icon "Active Fault" appears on the display. Pressing "Enter Button" will display the hidden fault again.
|
|
|
|
AS60558,00011FC -19-26JAN09-5/7
|
|
6.

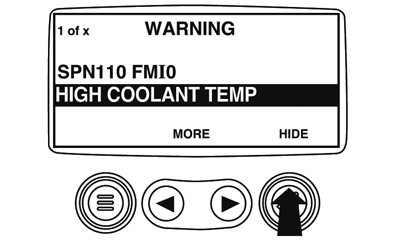

Pressing "Enter Button" again will hide the fault and return to the display of one or four parameters.
|
|
|
|
AS60558,00011FC -19-26JAN09-6/7
|
|
7.

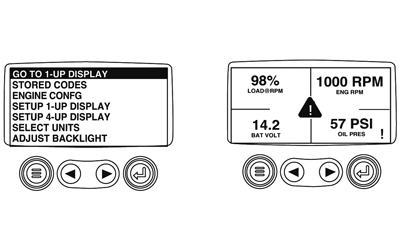

The display of one or four parameters will show the fault icon until the fault is corrected.
NOTE:
Ignoring the Active Trouble Code may result in serious engine damage.
|
|
|
|
