Quadruple Hydraulic Pump

The quadruple hydraulic pump (A) is V-belt driven.

The belt tension required to start up the engine is achieved by means of spring (B) on the pivoting pump support.

When the hydraulic pump operates, the drive belt is tensioned automatically by the shift of the pump support depending on the required drive power.

Consult "Specifications" section for system details.

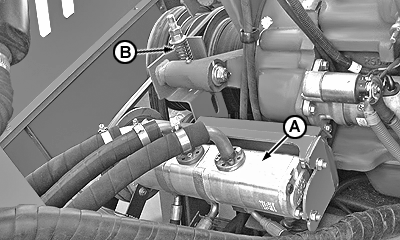

A-Quadruple Hydraulic Pump
B-Spring
