Adjusting Fan Air Flow Direction

IMPORTANT: To facilitate adjustment, first adjust the baffles and then regulate fan speed.

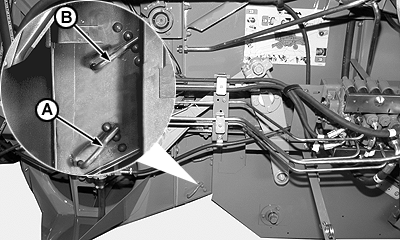

NOTE: For soy beans, wheat and corn start with the lower baffle (A) in the first position (from the top) and the upper baffle (B) in the second position (from the top).

A-Lower Baffle
B-Upper Baffle

AS60558,0001204 -19-27JAN09-1/1
