Opening Side Shield

NOTE: The procedure is the same for both sides of the combine.

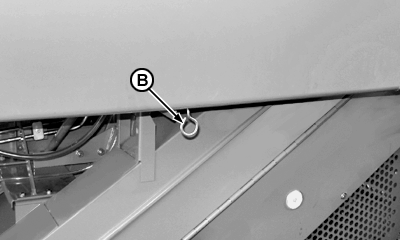

1. Release clamp (B) by pulling it downward.

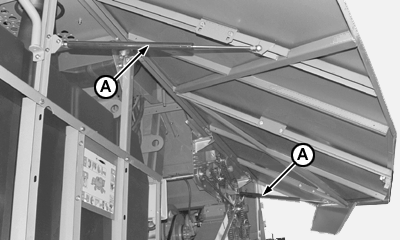

2. Gas cylinders (A) will support shield once it is released from the spring latch. Shield will open enough to allow safe service on this side of combine.

3. Close shield by lowering it until it locks in clamp (B).


A-Gas spring
B-Clamp

CQ274450
CQ266290

AS60558,0001209 -19-29JAN09-1/1
