Hydraulic System Oil Level

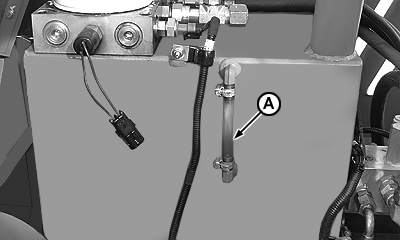

Check oil level at sight glass (A). Oil must be visible at center of sight glass (A). Top up with the recommended oil as necessary.

Consult capacity in "Specifications" section.

Recommended oil: John Deere HY-GARD ™ .

NOTE: Before checking oil level, lower cutting platform to the ground, place unloading auger in transport position and fully lower reel, so that all of the respective hydraulic cylinders are totally retracted.
