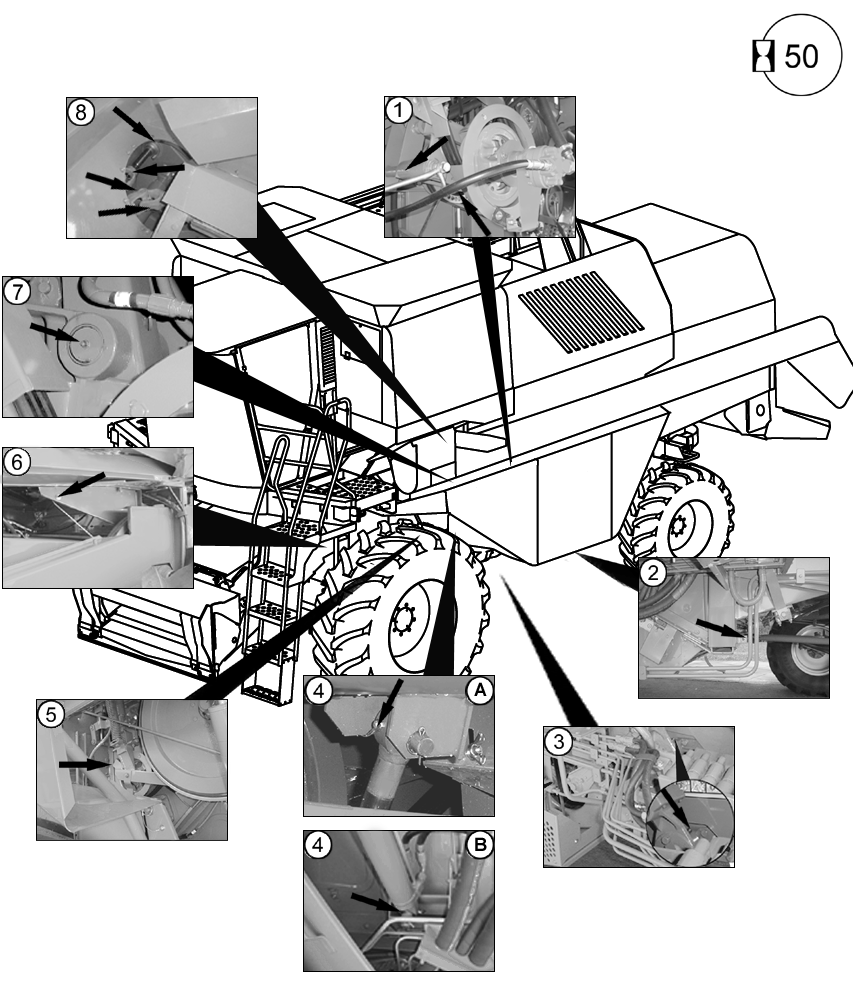

IMPORTANT: Recommended service intervals are for average conditions. Service more often if combine is operated in extreme conditions.

2. Lubrication points. One point on rear axle linkage.

3. Lubrication points. One point on drive arm of the left-hand cleaning shoe.

4. Lubrication points. One on upper part (A) and one on lower part (B), on the bearings of the unloading auger swing cylinder.

5. Lubrication points. One point on the header drive pulley.

6. Lubrication points. One point on the feeder house linkage bearing.

7. Lubrication points. One point on bearing of drive belt idler of hydrostatic pump.

8. Lubrication points. Two points on the unloading auger U-joints and two on auger linkage.

NOTE: To access these points the grain tank must be empty. Raise the end of the shield.
