Automatic Lateral Tilt Control

NOTE: Automatic lateral tilt is only for rigid headers equipped with sensors.

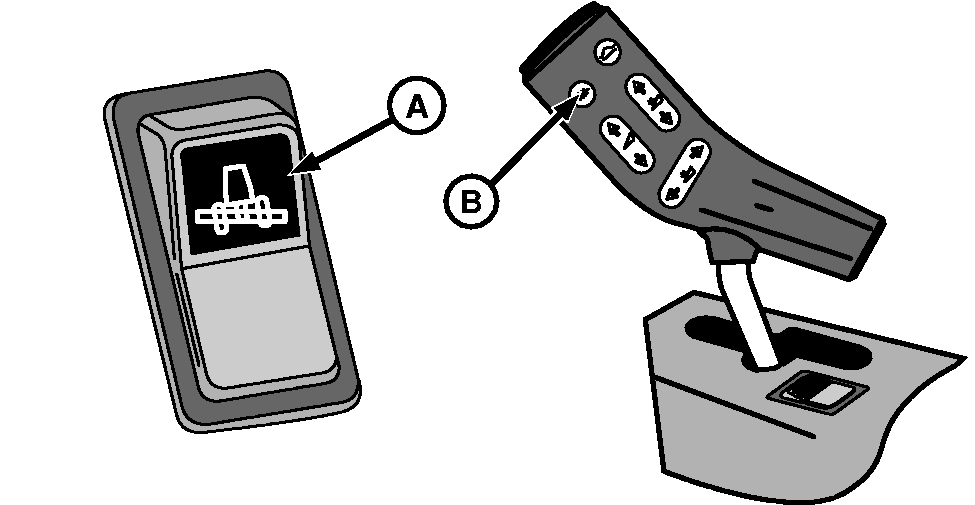

Lateral tilt switch (A) has the function to engage/disengage automatic mode of lateral header tilt control system.

Automatic mode initiates when "Return-to-cut" key (B) is pressed.

Rigid headers have a sensor on each side of the header for this control.

The automatic lateral tilt control ceases to operate whenever one of the manual raise or manual lower keys is pressed. Automatic mode reinitiates when "Return-to-cut" key (B) is pressed.

Automatic lateral tilt control mode can be used together with automatic height control or float control.

AS60558,000121D -19-03FEB09-1/1
