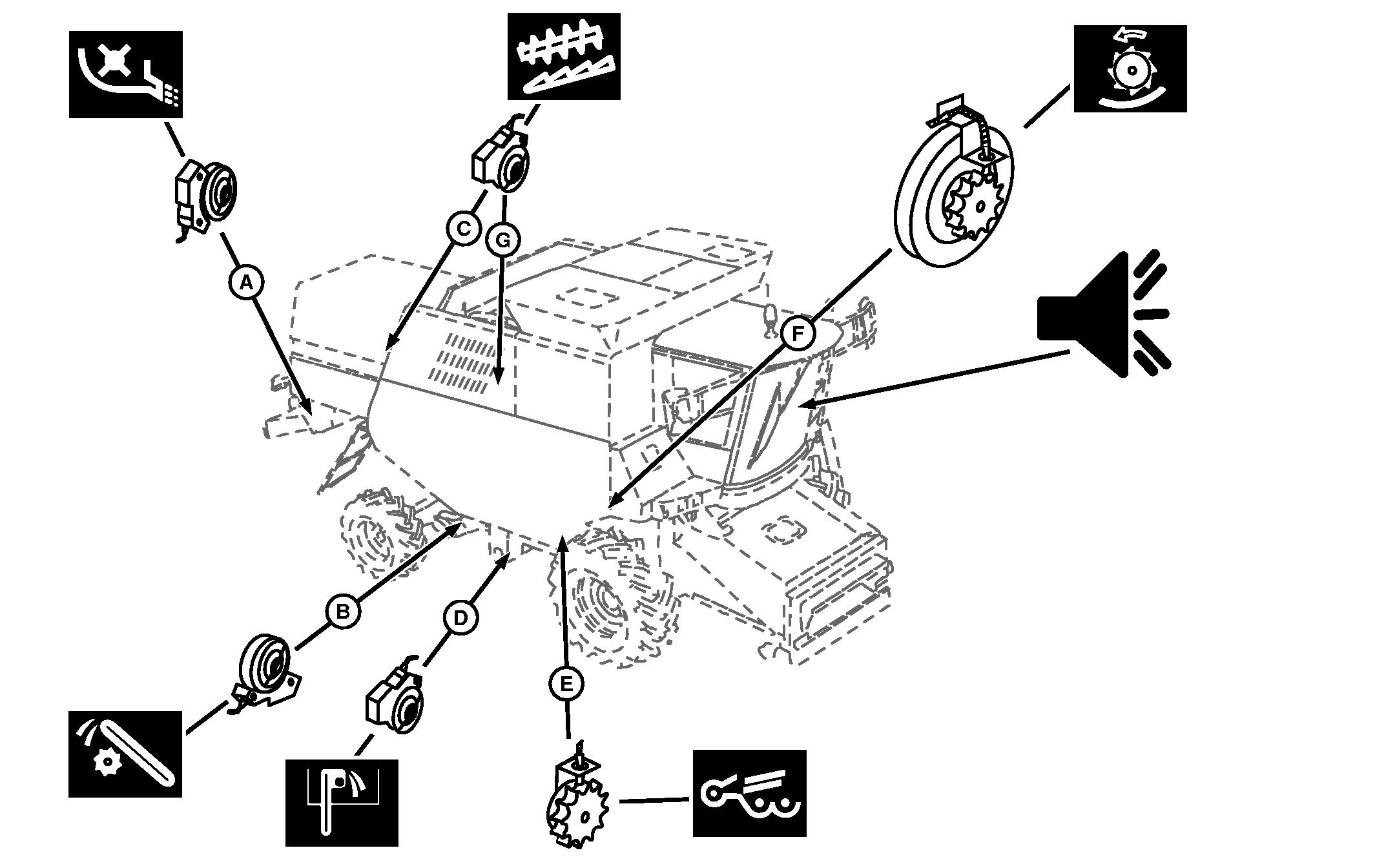

A-Straw chopper
B-Tailings elevator

C-Straw walker
D-Clean grain elevator

E-Fan
F-Threshing cylinder

G-Power separator (WTS)

With engine shut off, electrical circuit on and threshing unit engaged, warning lights glow and buzzer must remain silent.

With engine in slow idle, machine stopped and shafts rotating, warning lights glow and buzzer must remain silent. If any shaft is without rotation (zero speed) the corresponding warning lamp starts blinking and cab buzzer sounds with priority 2. See "Cab Alarm Priorities".

With engine at working speed, machine stopped and shafts rotating, warning lights must go out and buzzer must remain silent. If any shaft is without rotation (zero

With machine working (harvesting) all lamps must be off and buzzer must remain silent. If the speed of any shaft decreases, indicating slugging, the corresponding warning light comes on and cab buzzer sounds with priority 2. See "Cab Alarm Priorities".

NOTE: If combine travels with separator engaged above 0.4 km/h (0.25 mph) and engine below 2000 rpm, cab buzzer will sound with priority 2. See "Cab Alarm Priorities".

AS60558,0001223 -19-03FEB09-1/1
