Tension of Conveyor Chains - 300 Series Feeder House

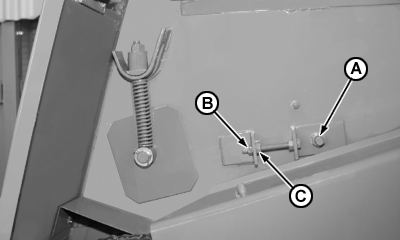

Loosen nut (A) on both sides. Turn nuts (B) and (C) evenly on both sides of feeder house. Retighten them securely after the adjustment.

IMPORTANT: The chain tension will be ok, when the lowest slat slightly touches the floor of the feeder house.
