AS60558,0001229 -19-04FEB09-1/2

IMPORTANT: Recommended service intervals are for average conditions. Service more often if combine is operated in extreme conditions.

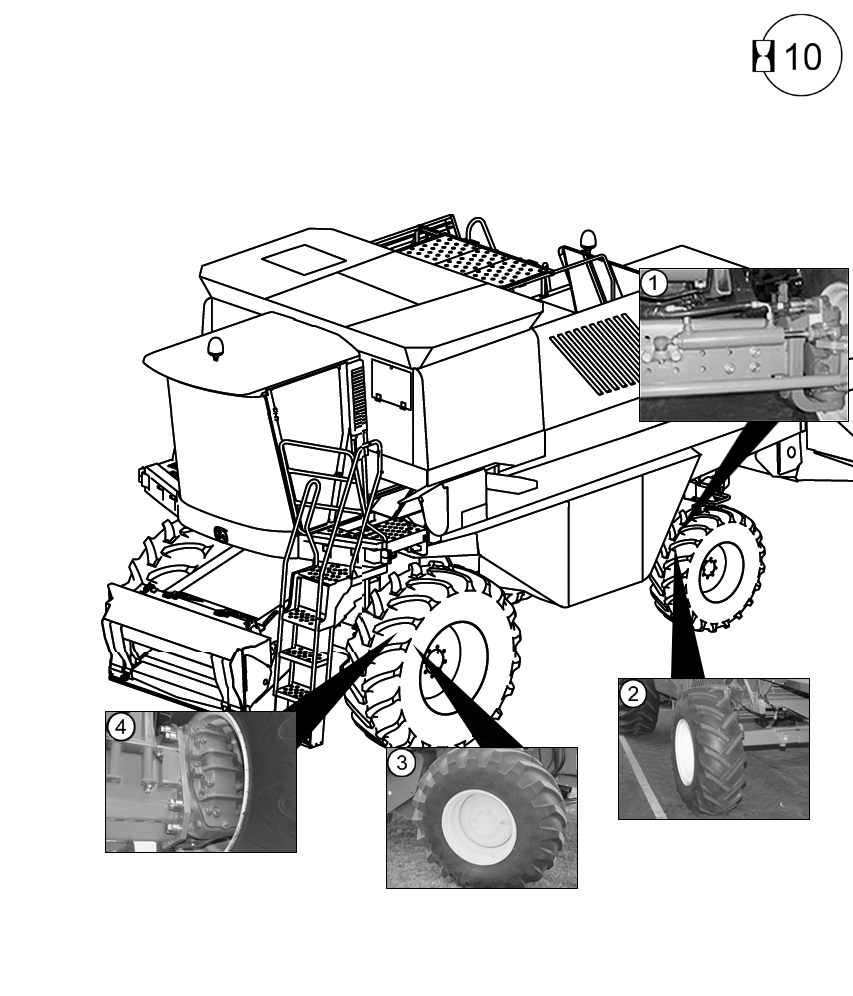

2. Carry out first retightening of all rear wheel attaching nuts to a torque of 180 N·m (130 lb-ft). Thereafter, repeat this procedure every 200 hours.

NOTE: Four-wheel drive: Retighten wheel nuts to 200 N·m (145 lb-ft).

3. Carry out first retightening of front wheel nuts to 550 N·m (400 lb-ft). Thereafter, repeat this procedure every 200 hours.

NOTE: Refer to "Installing Front Wheels" for further details.

4. Carry out the first retightening of final drive attaching bolts to 450 N·m (332 lb-ft). Thereafter, repeat this procedure every 50 hours.

AS60558,0001229 -19-04FEB09-2/2
