AS60558,000122B -19-04FEB09-1/2

IMPORTANT: Recommended service intervals are for average conditions. Service more often if combine is operated in extreme conditions.

CAUTION: When cleaning or changing air filter, shut down engine and remove starter key.

IMPORTANT: Clean these elements whenever air flow is noticeably reduced. The recirculation filter may not require as frequent cleaning as the fresh air (main) filter.

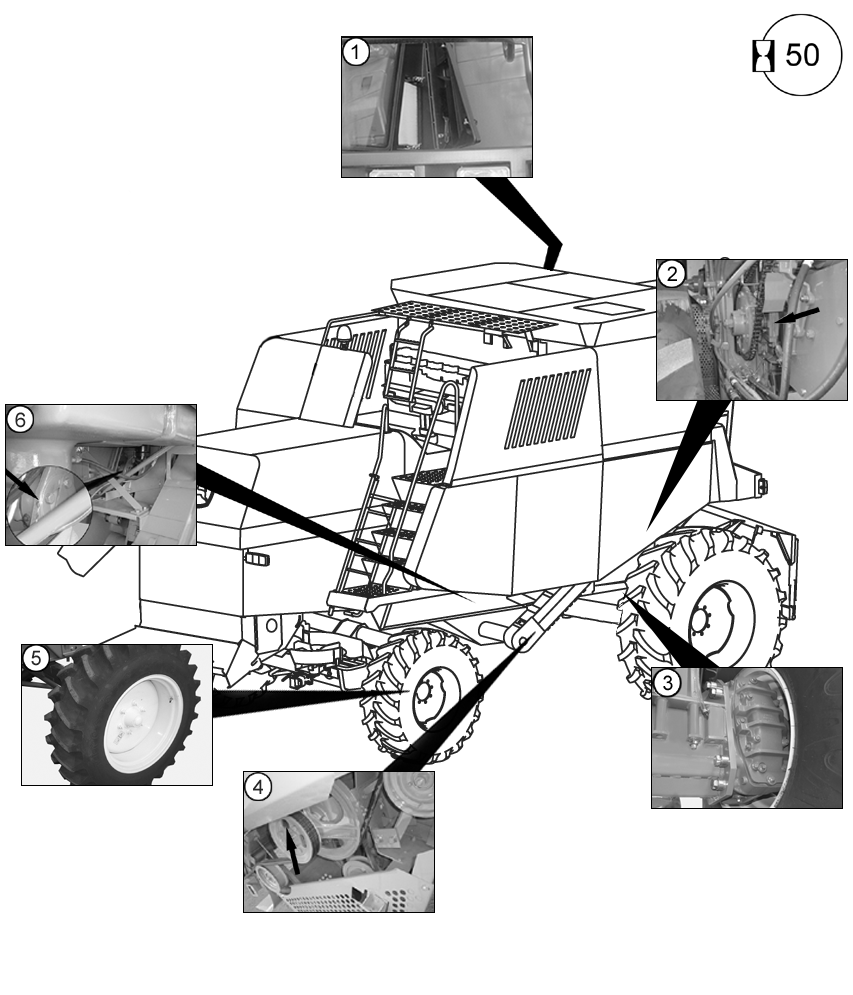

2. Lubrication points. One point on the feeder house linkage bearing.

NOTE: Remove existing plastic shield to access bearing.

3. Retighten final drive attaching bolts to 450 N.m (332 lb-ft).

4. Lubrication points. One point on drive pulley of tailings elevator/fan.

5. Lubrication points. One point on each wheel hub.

6. Lubrication points. One point on drive arm of the right-hand cleaning shoe.

AS60558,000122B -19-04FEB09-2/2
