AS60558,000122C -19-04FEB09-1/2

IMPORTANT: Recommended service intervals are for average conditions. Service more often if combine is operated in extreme conditions.

IMPORTANT: Ensure that your hands and the engine are perfectly clean when installing replacement filter elements or changing the oil.

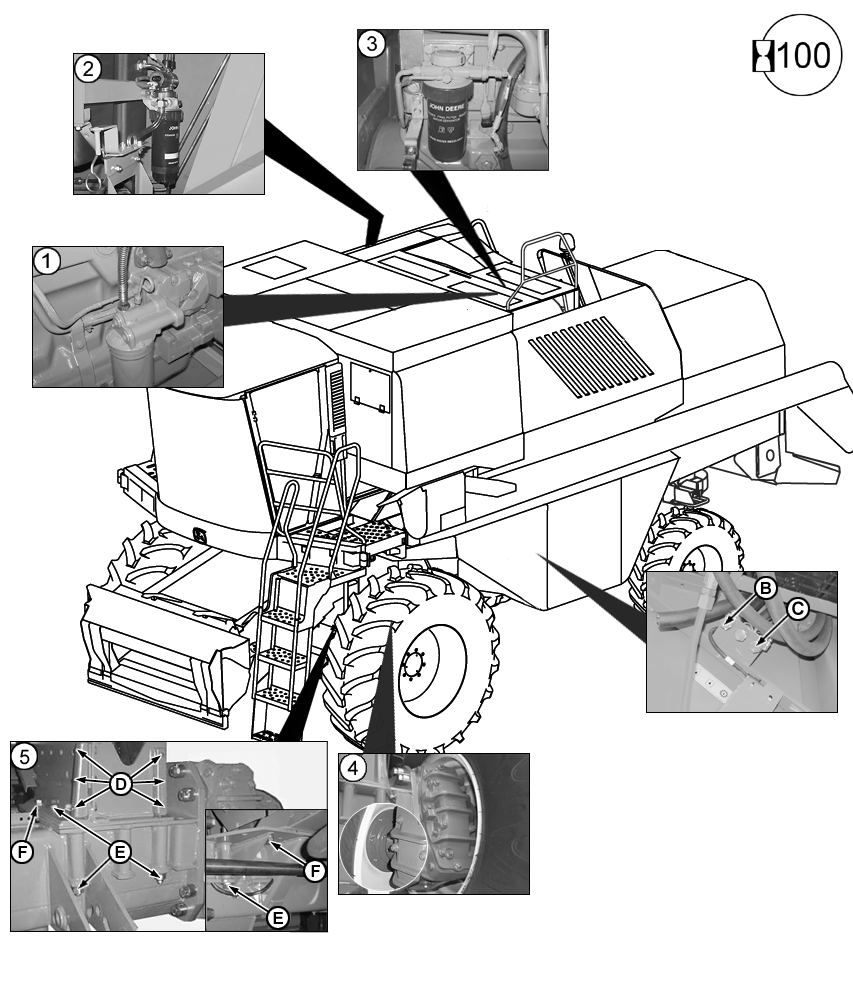

NOTE: Drain engine oil through engine oil drain plug (B).

2. Carry out first replacement of filter element of primary fuel filter (water separator). Further replacements must be carried out every 500 hours.

3. Carry out first replacement of final fuel filter. Further replacements must be carried out every 250 hours.

4. Carry out first replacement of final drive oil. Further replacements must be carried out every 1000 hours.

NOTE: Clean vent plug of final drive.

5. Carry out first retightening of front axle attaching bolts. Further retightening should be carried out every 500 hours.

a. Tighten bolts (D) to 95 N·m (70 lb-ft).

b. Tighten bolts (E) to 300 N·m (221 lb-ft).

c. Tighten bolts (F) to 240 N·m (177 lb-ft).

AS60558,000122C -19-04FEB09-2/2
