AS60558,000122D -19-04FEB09-1/2

IMPORTANT: Recommended service intervals are for average conditions. Service more often if combine is operated in extreme conditions.

Carry out first adjustment of engine valves. See your John Deere dealer for this adjustment. Thereafter, repeat this procedure every 2000 hours .

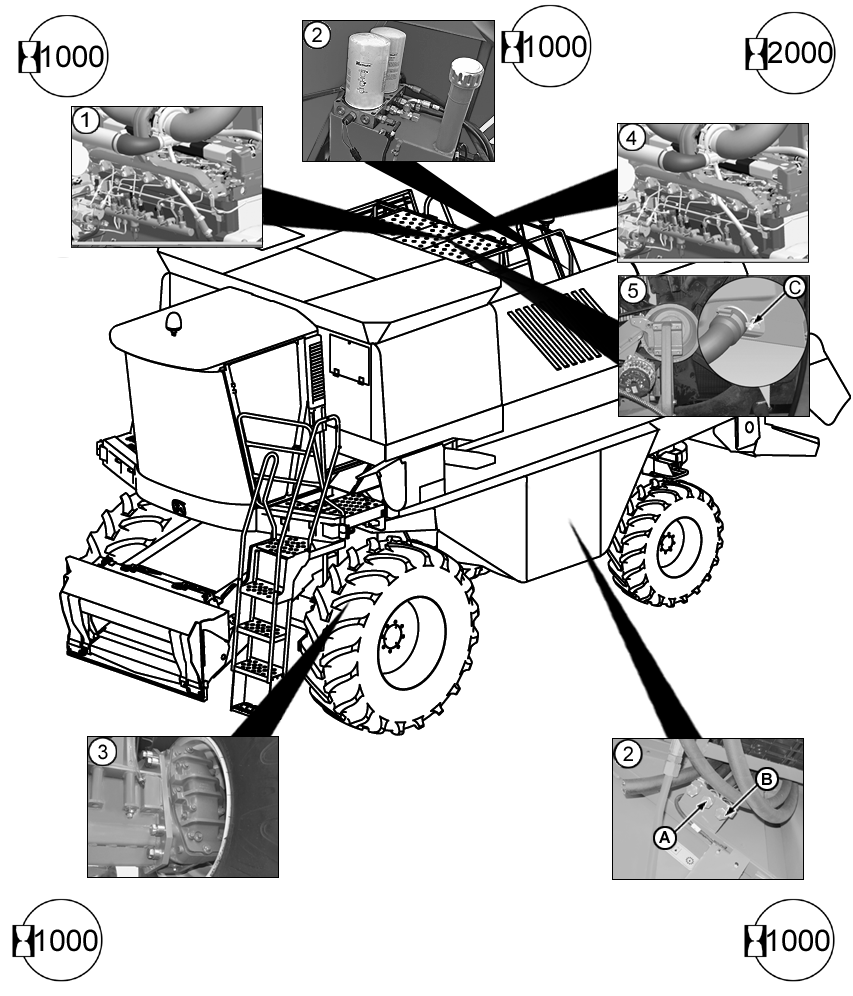

2. Service points-Every 1000 hours:

Change hydraulic system oil through drain plug (A).

Change hydraulic oil filters.

NOTE: Replace filters when hydraulic oil filter indicator light comes on, even before reaching 1000 hours.

3. Service points-Every 1000 hours:

Change oil of final drives.

4. Service points-Every 2000 hours:

Carry out adjustment of engine valves. See your John Deere dealer for this adjustment.

5. Change engine coolant. Drain coolant through drain plug (C). Clean radiator internally and externally.

IMPORTANT: See how to change coolant in "Changing Engine Coolant".

AS60558,000122D -19-04FEB09-2/2
