Combine Dimensions

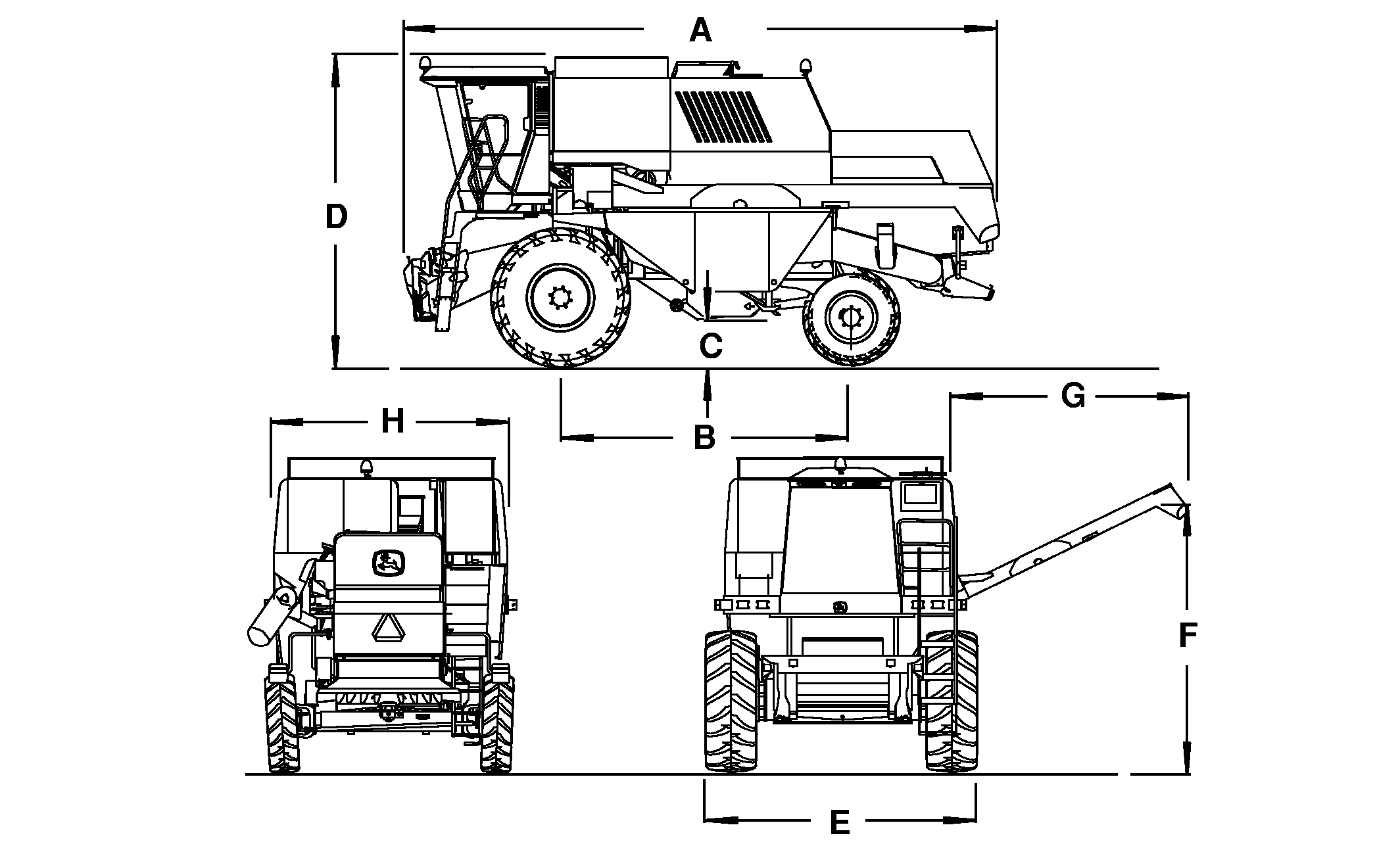

CQ243610

Combine views


A-Total length
B-Distance from front to rear axle


C-Ground clearance of vehicle
D-Total height


E-Front axle width between outside tire faces
F-Maximum unloading height


G-Unloading auger reach
H-Overall width

AS60558,000123D -19-05FEB09-1/2

1470 and 1470 CWS/WTS combine dimensions* with 28.1-26 front tires and 12.4-24 rear tires
A B C D E F** F*** G** G*** H
8.25 m
(27.06 ft)		 3.57 m
(11.7 ft)		 0.47 m
(1.54 ft)		 3.73 m
(12 ft)		 3.62 m
(11.87 ft)		 4.55 m
(14.93 ft)		 5.05 m
(16.57 ft)		 3.62 m
(11.87 ft)		 4.28 m
(14.04 ft)		 2.95 m
(9.68 ft)
1470 CWS and 1470 WTS combine dimensions* with 28.1-26 front tires and 14.9-24 rear tires
A B C D E F** F*** G** G*** H
8.25 m
(27.06 ft)		 3.57 m
(11.7 ft)		 0.47 m
(1.54 ft)		 3.73 m
(12 ft)		 3.62 m
(11.87 ft)		 4.55 m
(14.93 ft)		 5.05 m
(16.57 ft)		 3.62 m
(11.87 ft)		 4.28 m
(14.04 ft)		 2.95 m
(9.68 ft)
1470 CWS and 1470 WTS combine dimensions* with 18.4-38 front tires (double wheel) and 14.9-24 rear tires
A B C D E F** F*** G** G*** H
8.25 m
(27.06 ft)		 3.57 m
(11.7 ft)		 0.47 m
(1.54 ft)		 3.73 m
(12 ft)		 4.62 m
(15.16 ft)		 4.55 m
(14.93 ft)		 5.05 m
(16.57 ft)		 3.62 m
(11.87 ft)		 4.28 m
(14.04 ft)		 2.95 m
(9.68 ft)
1570 CWS and 1570 WTS combine dimensions* with 18.4-38 front tires (double wheel) and 16.9-24 rear tires
A B C D E F** F*** G** G*** H
8.25 m
(27.06 ft)		 3.72 m
(12.2 ft)		 0.57 m
(1.87 ft)		 4.16 m
(13.65 ft)		 4.62 m
(15.16 ft)		 4.55 m
(14.93 ft)		 5.05 m
(16.57 ft)		 3.62 m
(11.87 ft)		 4.28 m
(14.04 ft)		 2.95 m
(9.68 ft)
1570 and 1570 CWS/WTS combine dimensions* with 30.5-32 front tires and 16.9-24 rear tires
A B C D E F** F*** G** G*** H
8.25 m
(27.06 ft)		 3.72 m
(12.2 ft)		 0.57 m
(1.87 ft)		 4.16 m
(13.65 ft)		 3.92 m
(12.86 ft)		 4.55 m
(14.93 ft)		 5.05 m
(16.57 ft)		 3.62 m
(11.87 ft)		 4.28 m
(14.04 ft)		 2.95 m
(9.68 ft)
*The dimensions are approximate values and vary according to tire configuration.
** Standard Unloading Auger
*** Long Unloading Auger



AS60558,000123D -19-05FEB09-2/2
