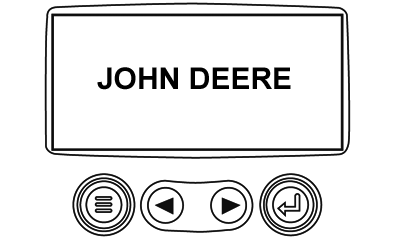

Diagnostic Gauge Menus (First Time Start Up)1. When power is first applied to the Diagnostic Gauge, the "Logo" is displayed. |
|
GB52027,0000553 -19-23OCT08-1/3 |

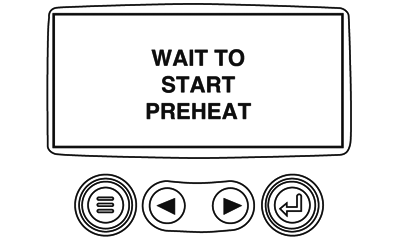

| 2. The "Wait to Start" message will be displayed for engines with pre-startup sequence. Once the "Wait to Start" message is no longer displayed the operator may start the engine. |
|
GB52027,0000553 -19-23OCT08-2/3 |

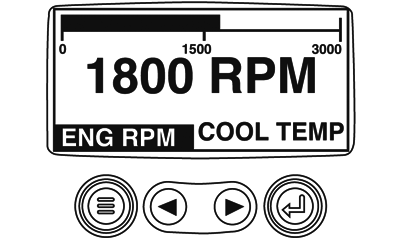

| 3. Once the engine has started the single engine parameter is displayed. |
|
GB52027,0000553 -19-23OCT08-3/3 |
