Stored Fault Codes

1. Starting at the single or four engine parameter display touch the "Menu button".

CQ280180

GB52027,0000556 -19-14FEB08-1/6

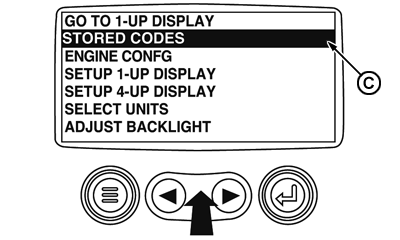

2. The main menu will pop up on the display. Use the "Arrow Buttons" to scroll through the menu until the Stored Fault Codes is highlighted.


C-Stored Codes

CQ280181

GB52027,0000556 -19-14FEB08-2/6

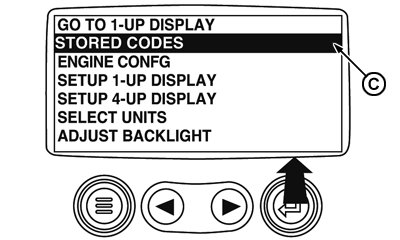

3. Once the "Stored Fault Codes" menu item has been highlighted touch the "Enter Button" to view the "Stored Fault Codes"


C-Stored Codes

CQ280182

GB52027,0000556 -19-14FEB08-3/6

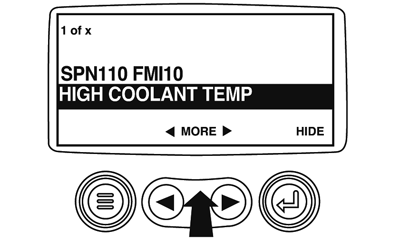

4. If the word "MORE" appears above the "Arrow Buttons" there are more stored fault codes that may be viewed. Use the "Arrow Buttons" to scroll to the next Stored Diagnostic Code.

CQ280183

GB52027,0000556 -19-14FEB08-4/6

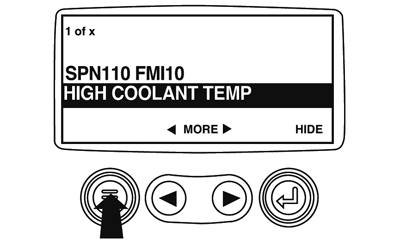

5. Touch the "Menu Button" to return to the main menu.

CQ280184

GB52027,0000556 -19-14FEB08-5/6

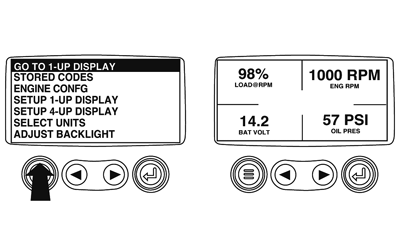

6. Touch the "Menu Button" to exit the Main menu and return to the engine parameter display.

CQ280185

GB52027,0000556 -19-14FEB08-6/6
