Engine Configuration Data

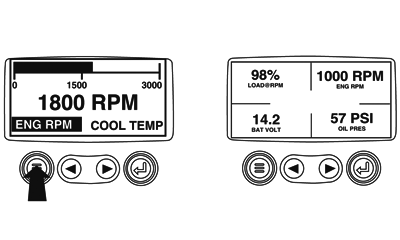

1. Starting at the single or four engine parameter display touch the "Menu Button".

CQ280180

GB52027,0000557 -19-14FEB08-1/6

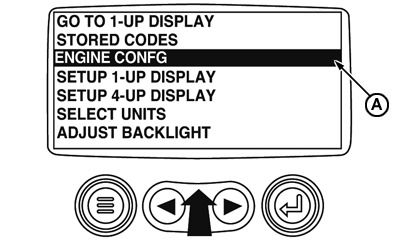

2. The main menu will pop up on the display. Use the "Arrow Buttons" to scroll through the menu until the "Engine Configuration" is highlighted.


A-"Engine Configuration" menu item

CQ280187

GB52027,0000557 -19-14FEB08-2/6

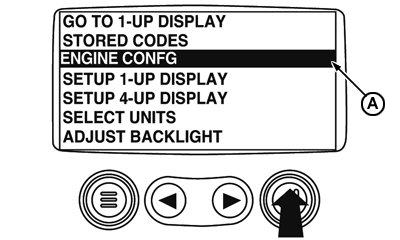

3. Once the "Engine Configuration" menu item has been highlighted touch the "Enter Button" to view the engine configuration data.


A-"Engine Configuration" menu item

CQ280188

GB52027,0000557 -19-14FEB08-3/6

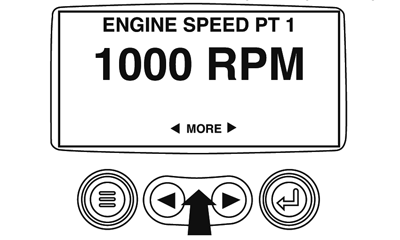

4. Use the "Arrow Buttons" to scroll through the engine configuration data.

CQ280189

GB52027,0000557 -19-14FEB08-4/6

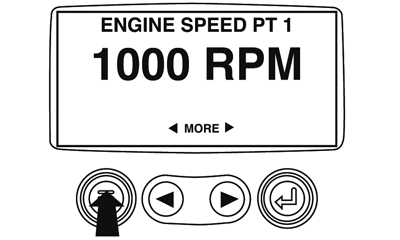

5. Touch the "Menu Button" to return to the main menu.

CQ280190

GB52027,0000557 -19-14FEB08-5/6

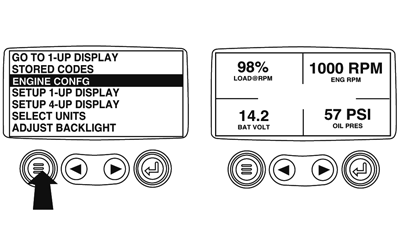

6. Touch the "Menu Button" to exit the Main menu and return to the engine parameter display.

CQ280191

GB52027,0000557 -19-14FEB08-6/6
