Back Light Adjustment

1. Starting at the single or four engine parameter display touch the "Menu Button".

CQ281984

GB52027,0000559 -19-23OCT08-1/6

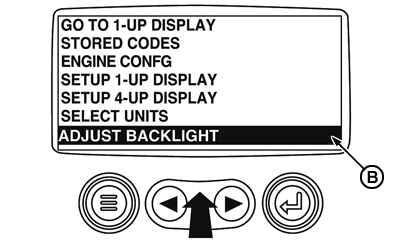

2. The main menu will pop up on the display. Use the "Arrow Buttons" to scroll through the menu until the "Adjust Backlight" is highlighted.


B-Adjust Backlight icon

CQ280205

GB52027,0000559 -19-23OCT08-2/6

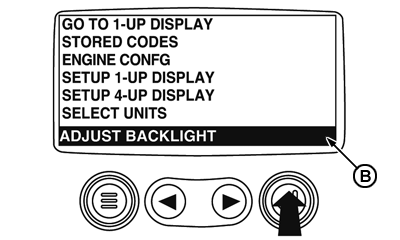

3. Once the "Adjust Backlight" menu item has been highlighted touch the "Enter Button" to activate the "Adjust Backlight" function.


B-Adjust Backlight icon

CQ280206

GB52027,0000559 -19-23OCT08-3/6

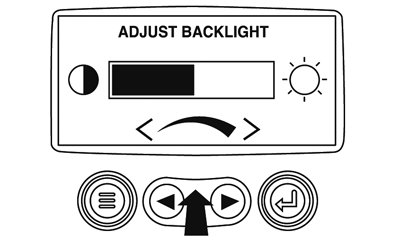

4. Use the "Arrow Buttons" to select the desired backlight intensity.

CQ280207

GB52027,0000559 -19-23OCT08-4/6

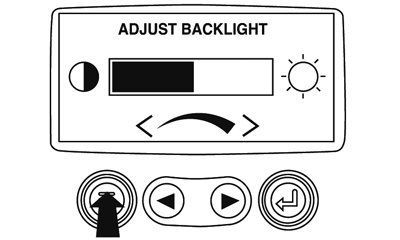

5. Touch the "Menu Button" to return to the main menu.

CQ280208

GB52027,0000559 -19-23OCT08-5/6

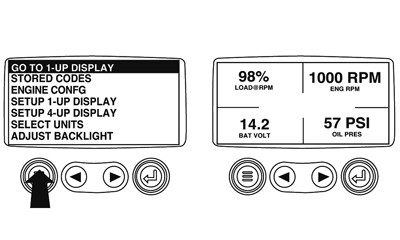

6. Touch the "Menu Button" to exit the Main menu and return to the engine parameter display.

CQ280209

GB52027,0000559 -19-23OCT08-6/6
