Contrast Adjustment

1. Starting at the single or four engine parameter display touch the "Menu Button".

CQ280201

GB52027,000055A -19-14FEB08-1/4

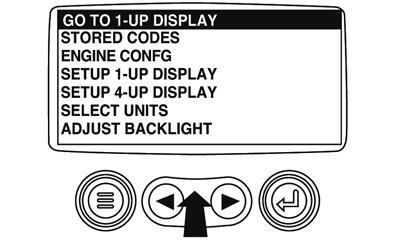

2. The main menu will pop up on the display. Use the "Arrow Buttons" to scroll through the menu until the "Adjust Contrast" is highlighted.

CQ280210

GB52027,000055A -19-14FEB08-2/4

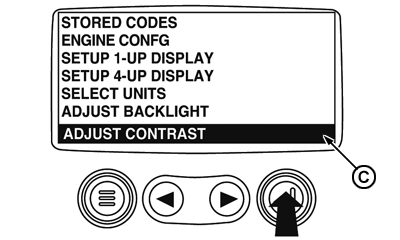

3. Once the "Adjust Contrast" menu item has been highlighted touch the "Enter Button" to activate the "Adjust Contrast" function.


C-Adjust Contrast icon

CQ280211

GB52027,000055A -19-14FEB08-3/4

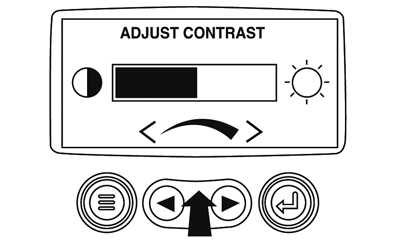

4. Use the "Arrow Buttons" to select the desired contrast intensity.

5. Touching the "Menu Button" will take you back through the menus.

CQ280212

GB52027,000055A -19-14FEB08-4/4
