Lateral Swing of Chaff Spreader

Lateral swing allows access to cleaning shoe, making adjustments and service easier.

Pull pin (A) so that the chaff spreader may be lowered to its full extent .

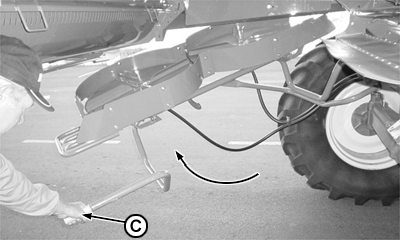

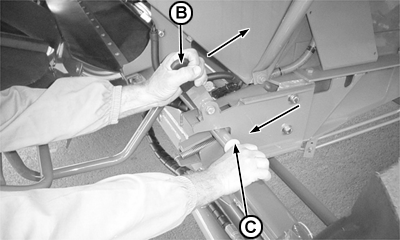

Push lever (B) to free arm (C). Pull arm (C) to swing chaff spreader in direction of arrow.

NOTE: At the end of adjustment or service return spreader to operating position, making sure that it is locked in place.
