OMCQ76042: 1450 CWS, 1470 WTS, 1570 CWS and 1570 WTS Combines, Block File: ML70882_00004C5_19

causym CAUTION: NEVER operate the combine without shields correctly installed.

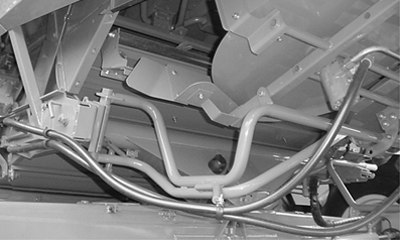

The chaff spreader is driven by a hydraulic hose on the left-hand side of the combine.

NOTE: The chaff spreader is driven by the hydraulic pump located in the straw walker intermediate drive set.

ML70882,00004C5 -19-03JUN05-1/1
