Access Points Behind Rear Ladder

Some services to be carried out on the engine, hydraulic system or straw-walkers require access via rear ladder.

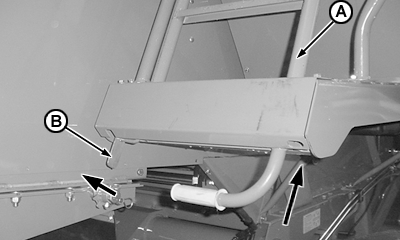

To access these points push (upwards) the ladder (A) and pull (rearwards) locking latch (B).

NOTE: To retract ladder, carry out reverse procedure.

ML70882,0000517 -19-06JUN05-1/1
