Installing Rear Wheels

causym CAUTION: PREVENT accidents. Support machine adequately. Machine tipping over can cause serious crushing injuries or even death.

IMPORTANT: Bolts/nuts must be clean and free of lube before installing. Torque value is for clean, dry bolts/nuts. Lubricating reduces friction and overloads bolts/nuts.

1. Park machine on a flat surface and set parking brake.

NOTE: Mount bushings (A) on rear wheels of four-wheel drive combines.

2. Install rear wheels and tighten attaching nuts (non-powered axle) or bolts (powered axle) of rear wheels according to specifications.

Specification

Rear Wheel Nuts (non-powered axles) -Torque 180 N·m (133 lb-ft)
Rear Wheel Attaching Bolts (Powered Axle) -Torque 200 N·m (145.5 lb-ft)

3. Tighten bolts according to recommended torque sequence.

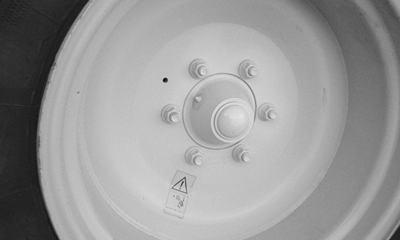

CQ221000

Rear wheel - non-powered axle

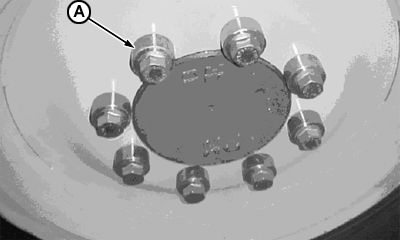

CQ220990

Rear wheel - powered axle

CQ221010

Torque Sequence

ML70882,00007BB -19-21MAR06-1/1
