Rotating Cylinder By Hand

causym CAUTION: Shut off engine and remove starter key before turning cylinder by hand.

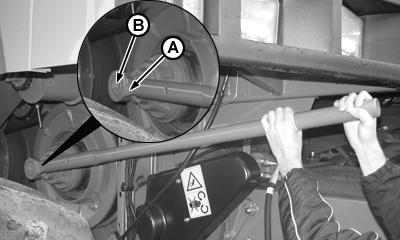

Insert wrench (A) over spline (B) on cylinder shaft.

Turn as required.

NOTE: Wrench is stored in front ladder tool box. Wrench extension is located next to clean grain elevator.

CQ250480

Cylinder drive without reduction gear

ML70882,0000809 -19-17SEP05-1/1
