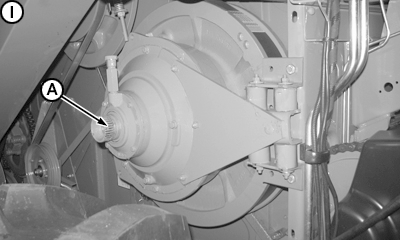

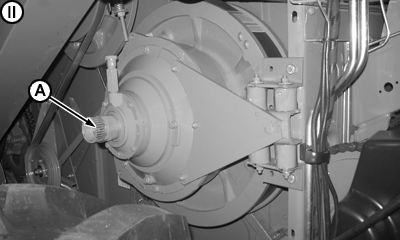

Operating Threshing Cylinder Speed Reduction GearIMPORTANT: Adjustments to both sheaves on threshing cylinder and overshot beater variable drive should only be performed by your John Deere dealer. Have the cylinder drive reduction gear serviced every 600 hours or once yearly by your John Deere dealer. MOBILITH SHC 007 grease recommended. Consult quantity in the "Specifications" section. Position I - Shifter collar (A) pushed in for speeds of 380 - 1100 rpm. Position II - Shifter collar (A) pulled out for speeds of 130 - 420 rpm. |
|
ML70882,000080A -19-01MAR06-1/1 |
